Thermal Insulation Coating Line

TANY provides thermal insulation and decoration integration solutions of exterior walls according to customers’ requirements. Four optional production lines include:

Which are classified by the paint types and processing programs. They are all highly automatic and the process technology is mature. You can choose among them according to your production demands.

If you have other special needs, welcome to consult TANY and discuss with us at any time. We have technicians with decades of experience and professional service teams, who are devoted to solving your any problems and meeting your requirements in construction material production and processing industry.
Paint Spraying Machine
    1. Automatic Paint Spraying Machine
    2. Automatic Paint Spraying MachineAutomatic paint spraying machine is applicable for the surfaces and board sides of plane workpieces and plane special-shaped workpieces such as decorative panels, panel furniture, cabinet boards, floor boards, plane doors, art works, blinds, calcium silicate boards and magnesium oxide boards.
    1. Automatic Paint Spraying Line
    2. Automatic Paint Spraying Line It’s used for the high-quality, large-quantity, continuous and automatic paint spraying works of plane surfaces and 4 board sides of panel workpieces, including panel furniture, solid wood doors, cabinet doors, art works, decorative panels, calcium silicate boards, magnesium oxide boards and fiber cement boards. The suitable paints include UV, PU, NC, water-based paints and fluorocarbon paint.
Paint Coating Machine
    1. Double Roller Paint Coating Machine
    2. Double Roller Paint Coating Machine Double roller paint coating machine is used for the plain coating of primer and topcoat of interior and exterior wall panels, decorative panels, furniture, floors and cupboards. It’s applicable for various new materials including calcium silicate boards, fiber cement boards, plastic, metal and glass, and the suitable paints include PU, NC, UV and water-based paints.
    1. Single Roller Paint Coating Machine
    2. Single Roller Paint Coating Machine Single roller paint coating machine is used for the plain coating of primer and topcoat of interior and exterior wall panels, decorative panels, furniture, floors and cupboards. It’s applicable for various new materials including calcium silicate boards, fiber cement boards, plastic, metal and glass, and the suitable paints include PU, NC, UV and water-based paints.
UV Curing Machine
    1. Double UV Curing Machine
    2. Double UV Curing Machine Double UV curing machine, equipped with two sets of UV light tubes, is used for the instant drying and curing of UV paint coated plane special-shaped workpieces, such as decorative panels, panel furniture, cabinet boards, floor boards, plane doors, art works, blinds, calcium silicate boards and magnesium oxide boards.
    1. Triple UV Curing Machine
    2. Triple UV Curing Machine Triple UV curing machine, equipped with three sets of UV light tubes, is used for the instant drying and curing of UV paint coated plane special-shaped workpieces, such as decorative panels, panel furniture, cabinet boards, floor boards, plane doors, art works, blinds, calcium silicate boards and magnesium oxide boards.
Paint Leveling Drying Tunnel

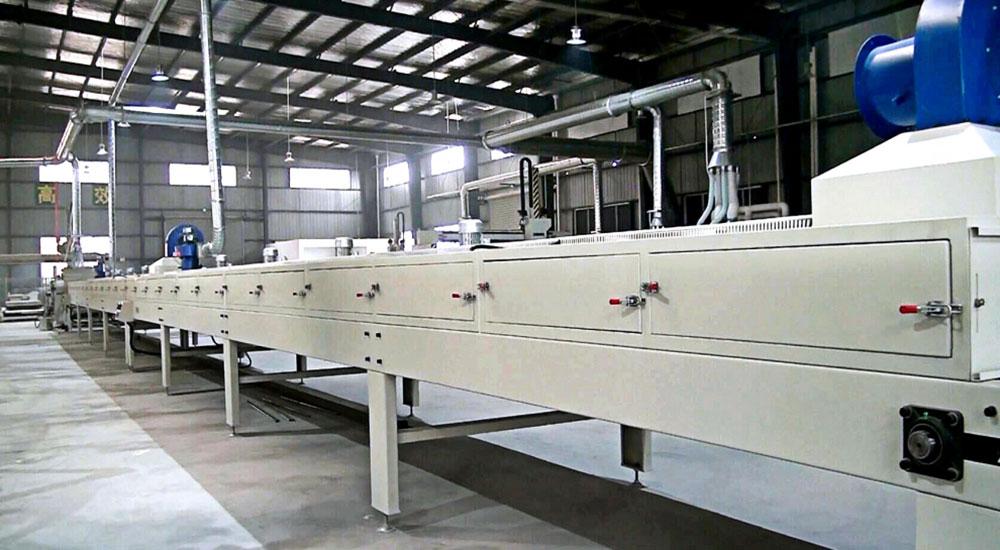

    1. Paint Leveling Drying Tunnel
    2. Infrared paint leveling drying tunnel is used for the paint leveling and drying of coated plane workpieces to make the film surface more flat and smooth. Suitable workpieces include various panel furniture, door boards, solid wood floor boards, cupboard panel, art works, blinds, calcium silicate boards, magnesium oxide boards and fiber cement panels.
Conveyor System
    1. Horizontal Belt Conveyor
    2. Horizontal Belt ConveyorIn matching works, horizontal conveying is needed due to the site limitation or process requirements to save space. Horizontal belt conveyor is used to convey plane workpieces with the same specification, including panel furniture, door boards, solid wood floor boards, cupboard side panel, art works, blinds, calcium silicate boards, magnesium oxide boards and fiber cement panels.
    1. Roller Conveyor
    2. Roller ConveyorRoller conveyor is used in line production for the conveying of plane workpieces such as panel furniture, door boards, solid wood floor boards, cupboard side panels, art works, blinds, calcium silicate boards, magnesium oxide boards and fiber cement panels.
    1. Automated Center Pushing Conveyor
    2. Automated Center Pushing ConveyorAutomated center pushing conveyor is used for the automatic mounting of products that need to be mounted to dry, such as plane workpieces, including decorative panels, calcium silicate boards and magnesium oxide boards, that are sprayed with NC, PU and water-based paints.
    1. Automatic Loading Conveying Equipment
    2. Automatic Loading Conveying EquipmentAutomatic loading conveying equipment is the combination of limit switch conveyor, roller conveyor and automatic gantry loading machine. It’s applicable in matching works for the automatic loading or unloading of panel workpieces, such as panel furniture, door boards, cupboard side panels, calcium silicate boards, magnesium oxide boards and fiber cement panels.
    1. Automatic Flip Machine
    2. Automatic Flip MachineAutomatic flip machine is used in matching works for the 180 degree automatic flipping of panel workpieces such as plane door boards, cupboard side panels, calcium silicate boards, magnesium oxide boards and fiber cement panels.
Dust Cleaner Machine
    1. Dust Cleaner Machine
    2. Dust cleaner machine is applicable for the dust cleaning of plane workpieces after sanding or before topcoating. Suitable workpieces include panel furniture, solid wood compound floor boards, plane door boards, art works and bamboo bed panels.
Sander Machine

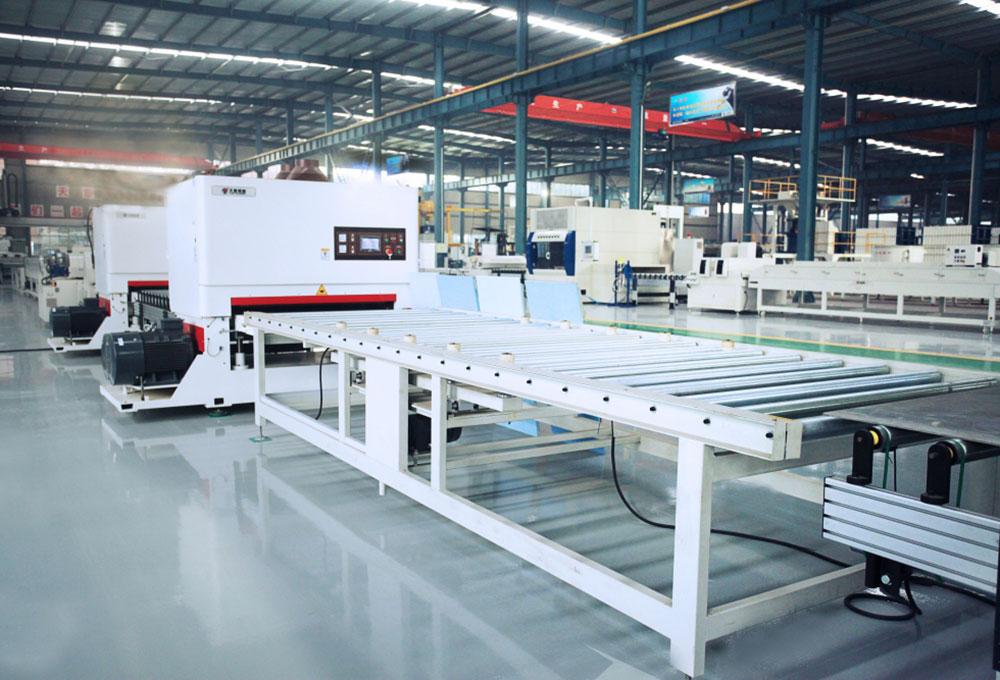

    1. Primer Sander Machine (Single Sanding, Single Polishing)
    2. Primer Sander Machine (Single Sanding, Single Polishing)Single sanding and single polishing primer sander machine is used in the sanding process which follows coating process for plate-type plane workpieces, such as panel furniture, door panels, side panels of cupboards, solid wood compound floor panels, calcium silicate boards, magnesium oxide boards and fiber cement panels.
    1. Primer Sander Machine (Double Sanding, Single Polishing)
    2. Primer Sander Machine (Double Sanding, Single Polishing)Double sanding and single polishing primer sander machine is used in the sanding process which follows paint coating process for plate-type plane workpieces, such as panel furniture, door panels, side panels of cupboards, solid wood compound floor panels, calcium silicate boards, magnesium oxide boards and fiber cement panels.
    1. Type II Primer Sander Machine (Double Sanding, Single Polishing)
    2. Type II Primer Sander Machine (Double Sanding, Single Polishing)Type II primer sander machine is used in the sanding process which follows paint coating process for plate-type plane workpieces, such as panel furniture, door panels, side panels of cupboards, solid wood compound floor panels, calcium silicate boards, magnesium oxide boards and fiber cement panels. This machine has a stationary working platform, which is suitable for line production.
    1. Back Sander Machine
    2. Back Sander MachineBack sander machine is used in the sanding process for the backsides of plate-type plane workpieces, such as panel furniture, door panels, side panels of cupboards, solid wood compound floor panels, calcium silicate boards, magnesium oxide boards and fiber cement panels.
    1. Thickness Sander Machine
    2. Thickness Sander MachineDual shelf thickness sander machine is used in the thickness sanding process for the observe sides of plate-type plane workpieces, such as panel furniture, door panels, side panels of cupboards, solid wood compound floor panels, calcium silicate boards, magnesium oxide boards and fiber cement panels.
Introduction

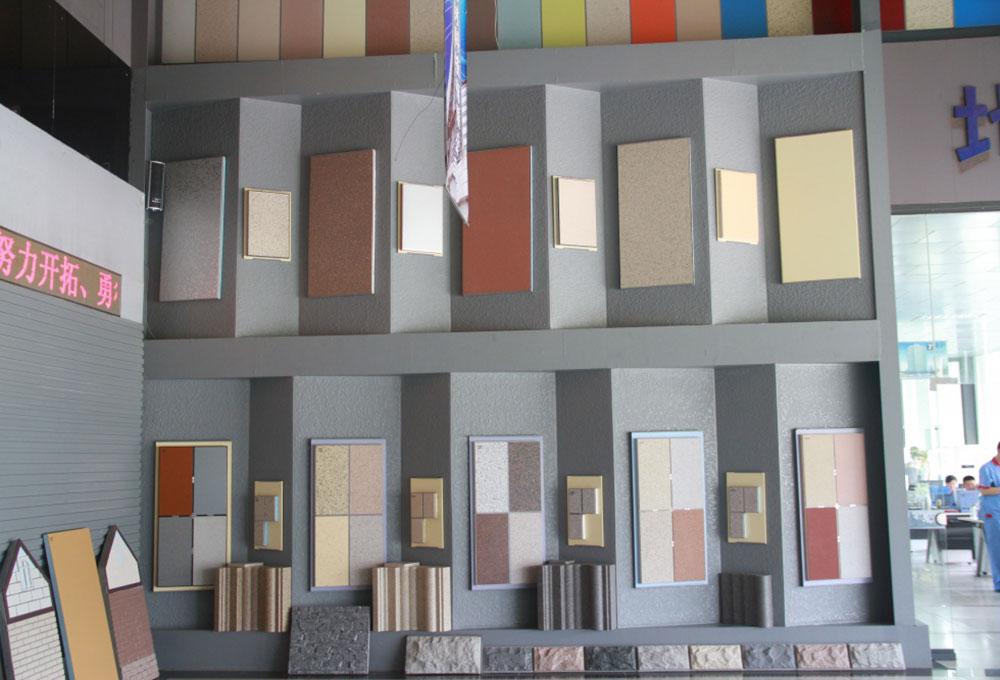

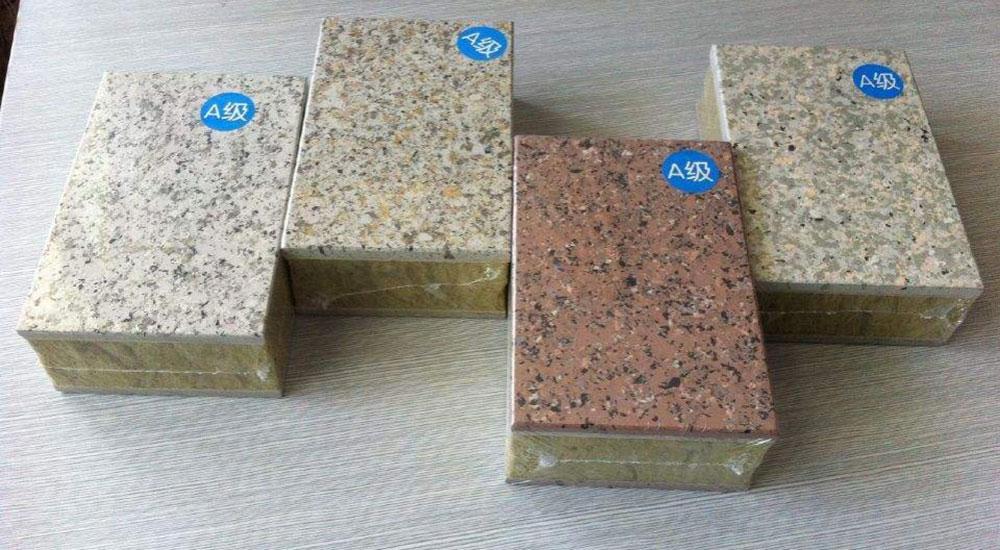

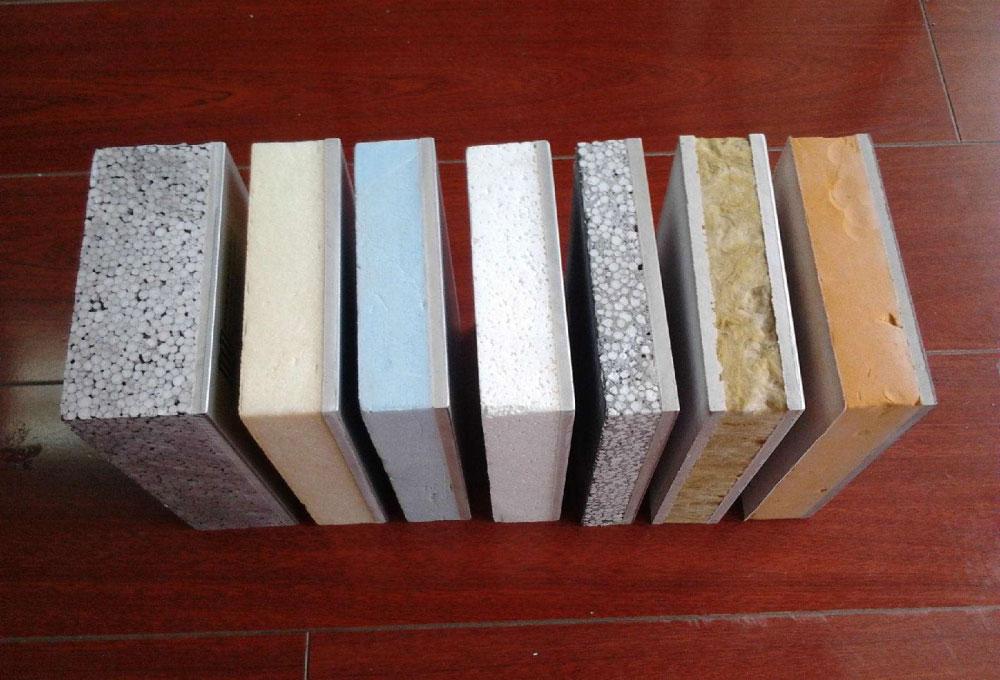

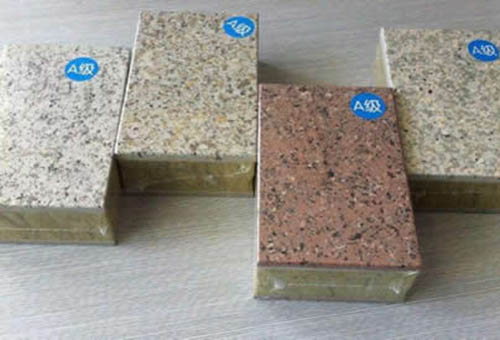

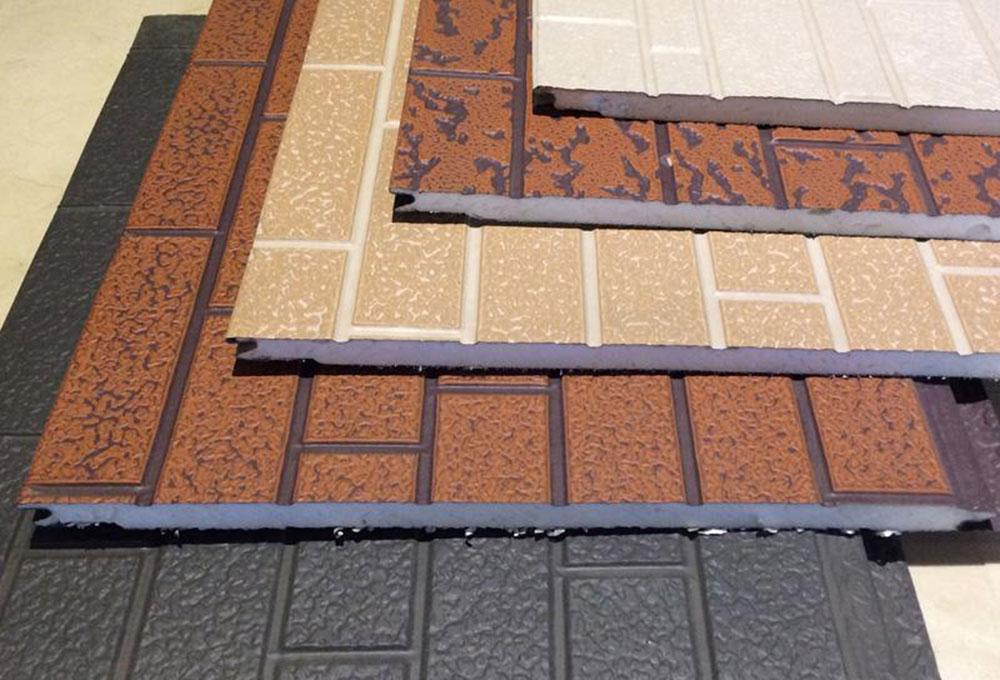

Highly strong inorganic resin boards are used as lining layers of thermal insulation and decoration integrated wall panels. The surfaces of inorganic panels are polished by highly precise automatic sander machines and then leveled with smooth putty. After polishing, they are sprayed with fluorocarbon paint, stone lacquer,Faux Granite Painting and water in water paint on automatic spraying machines according to standard process.

The installation of thermal insulation and decoration integrated wall panels is so easy that it doesn't need to lay keel or thermal insulation boards. Besides, there's no harsh requirements for climate and construction conditions. The installation process can be completed by three simple stages:

  • Pasting: The wall panels are pasted on walls using specified mortar.
  • Anchoring: The wall panels are permanently and mechanically connected with walls using specified metal anchorage.
  • Treating seams: The seams are filled with thermal insulated foam strips and then sealed with weatherproof sealant.
Practical application

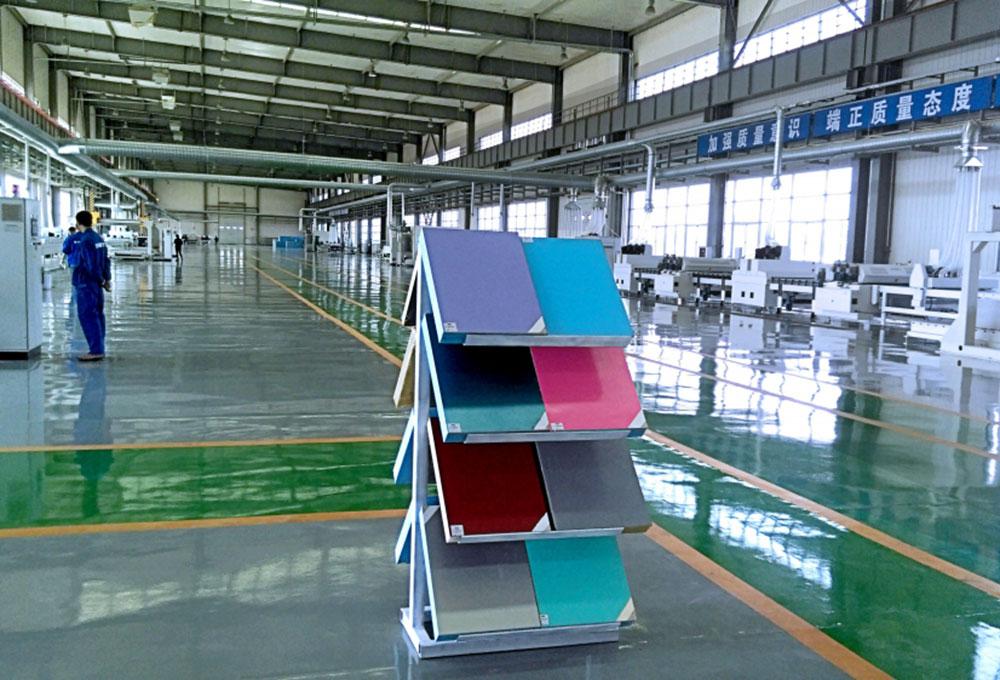

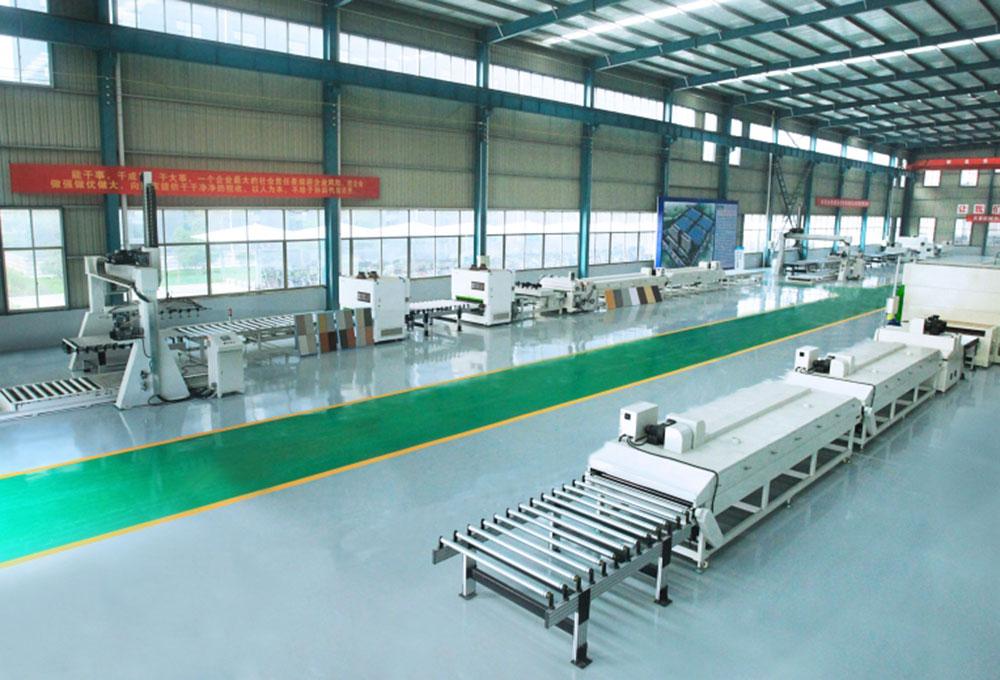

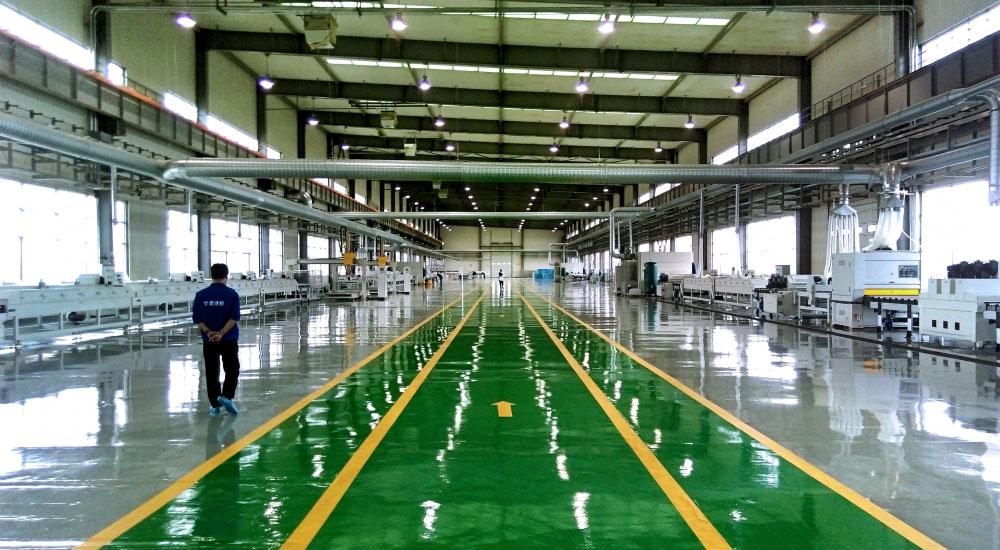

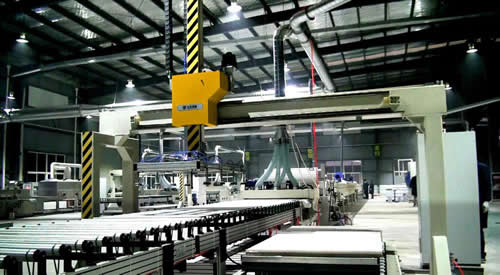

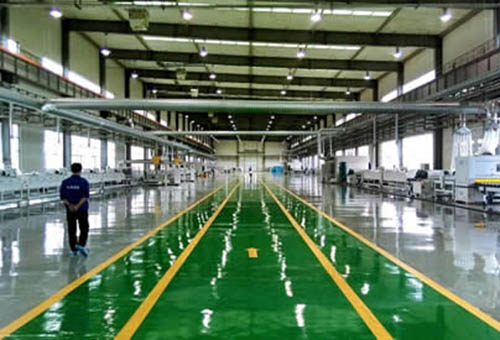

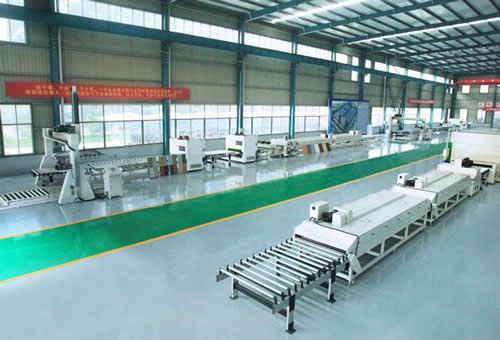

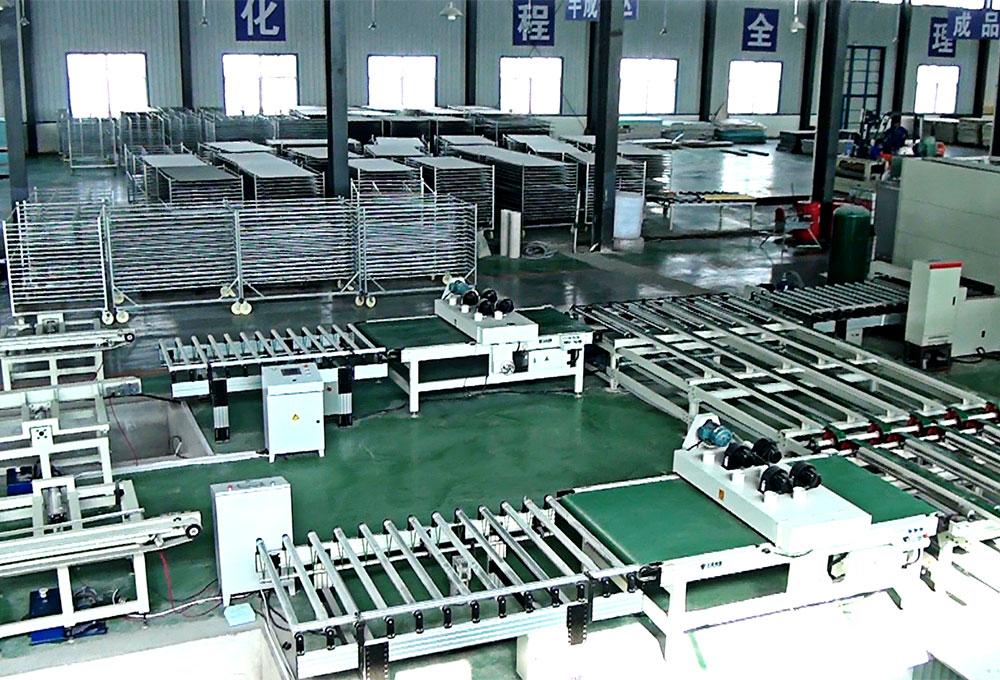

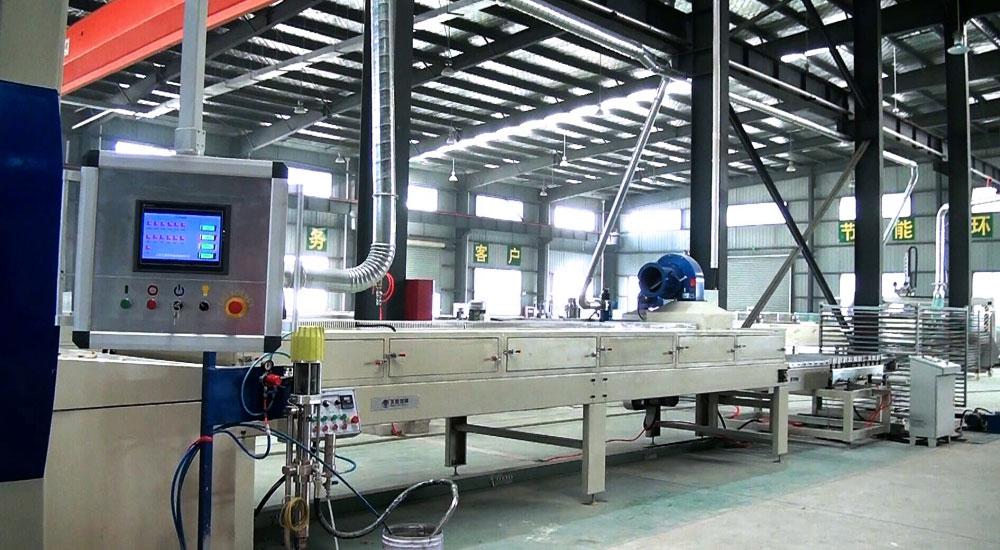

Thermal insulation and decoration integrated wall panel production site in Gansu construction investment company.

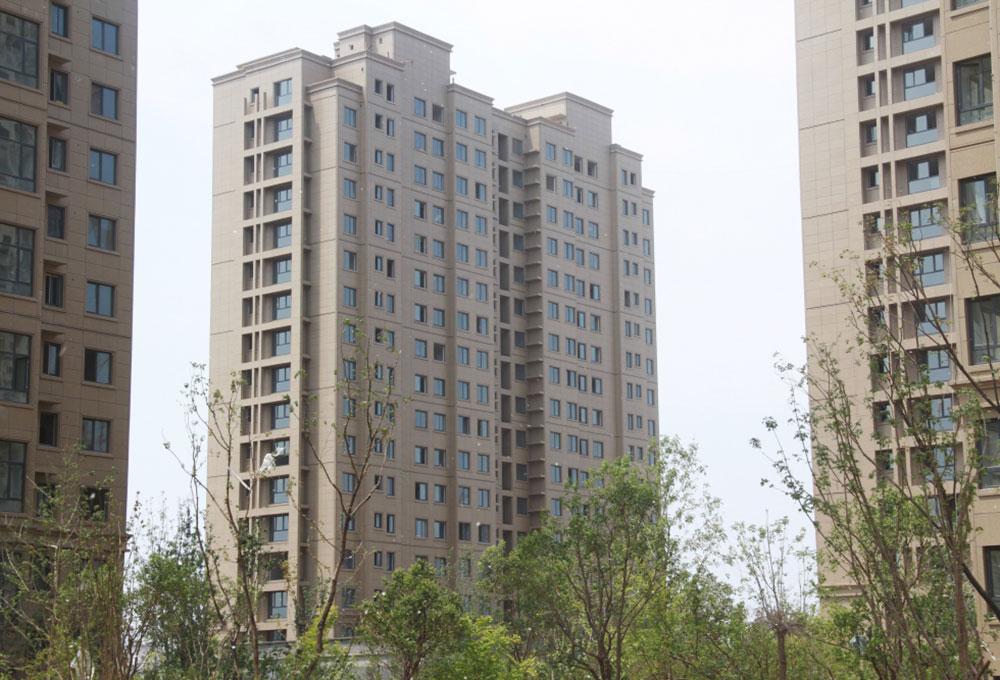

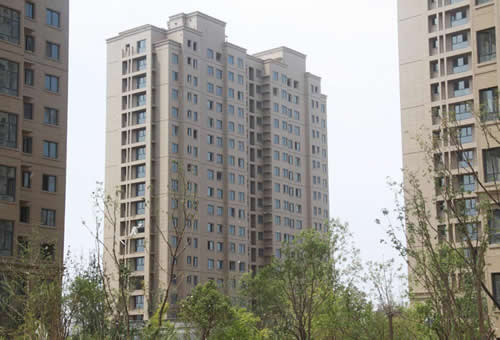

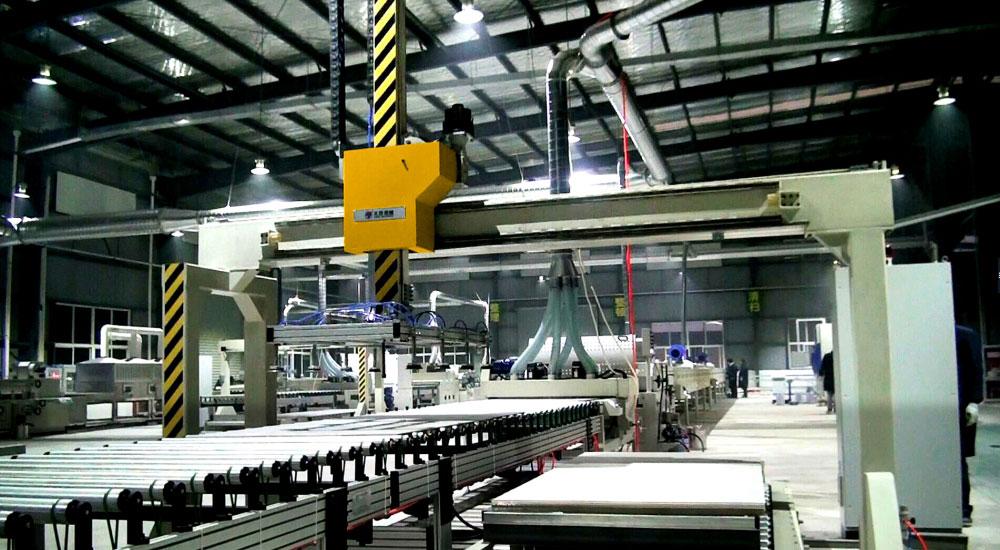

Thermal insulation and decoration integrated project in Heze Tiandi company.

TANY Machinery focuses on manufacturing machines and production line of construction wall partition panels with compound material. The wall panels made by these wall panel plants are light weight and they are suitable for any interior partition of building. Wall panel fabricated can increase construction efficiency and lower construction cost. We can offer various wall panel production plants for clients who want to use different compound material and we have already manufactured these wall panel production plants to some countries with good service.
