Primer Sander Machine (Single Sanding, Single Polishing)

Description

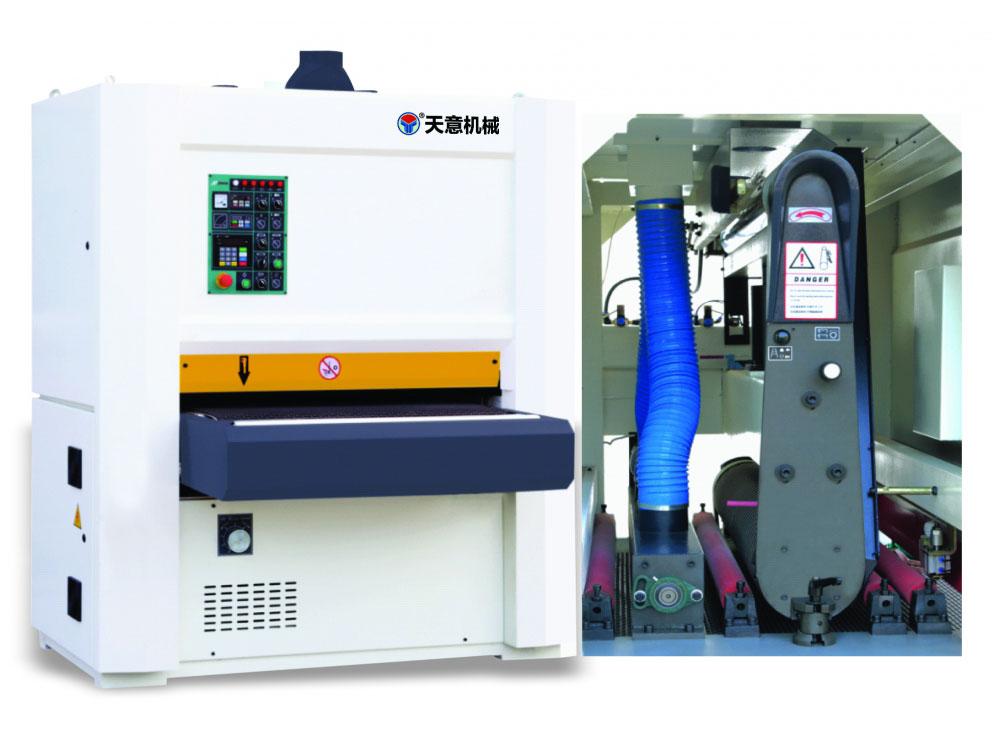

Single sanding and single polishing primer sander machine is used in the sanding process which follows coating process for plate-type plane workpieces, such as panel furniture, door panels, side panels of cupboards, solid wood compound floor panels, calcium silicate boards, magnesium oxide boards and fiber cement panels.
This machine is equipped with a set of sanding rubber rollers and a polishing roller. The rubber rollers adopt 35o elastic synthetic rubber which has rebound memory function. The polishing roller, produced by American 3M company, has reliable quality.

Technical parameters
Working width 30-1300 mm
Working thickness 2-100 mm
Abrasive belt speed 3-16m/s, frequency control
Feed speed 5-25 m/min
Size of abrasive belt 1320×2200mm
Total motor power 13 kw
Working air pressure ≧0.55 Mpa
Overall dimensions 1870L×1983W×2145H mm

Index
panel polishing, insulated wall panel, floor panel, furniture panel
