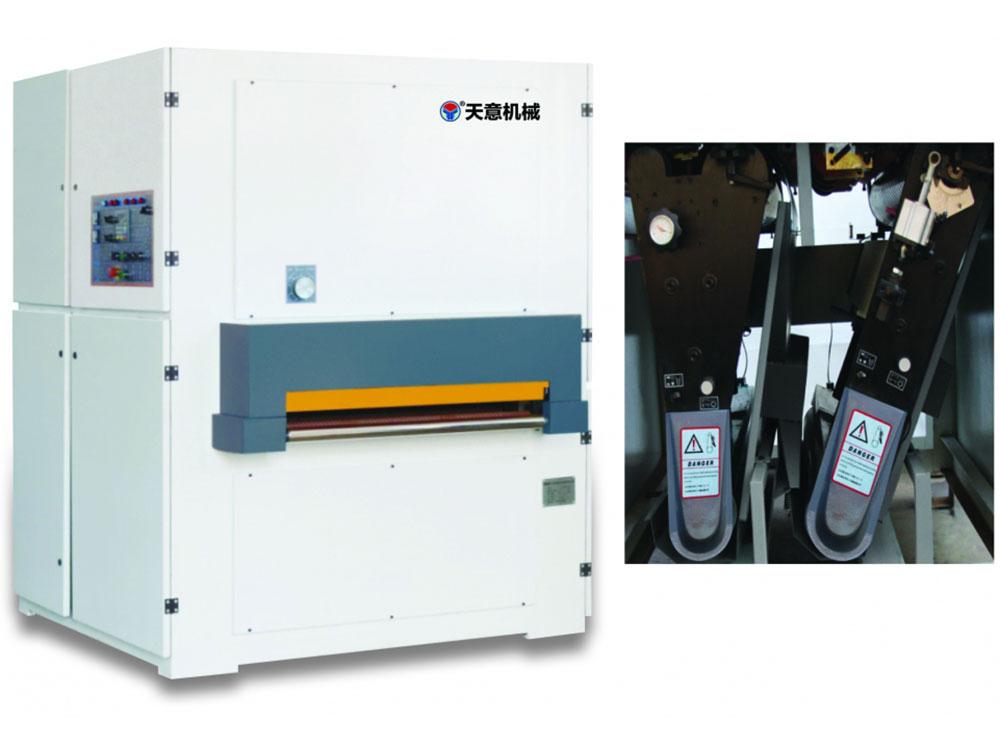

Back Sander Machine

Description

Back sander machine is used in the sanding process for the backsides of plate-type plane workpieces, such as panel furniture, door panels, side panels of cupboards, solid wood compound floor panels, calcium silicate boards, magnesium oxide boards and fiber cement panels.
Two sets of sanding rollers both adopt hard steel rollers, so the sanding is more precise.

Technical parameters
Working width 30-1300mm
Working thickness 2-100mm
Feed speed 5-25m/min
Size of abrasive belt 1320×2200mm
Total motor power 71kw
Working air pressure ≧0.55Mpa
Overall dimensions 2350L×2100W×2180H mm

Index
panel polishing, insulated wall panel, floor panel, furniture panel
