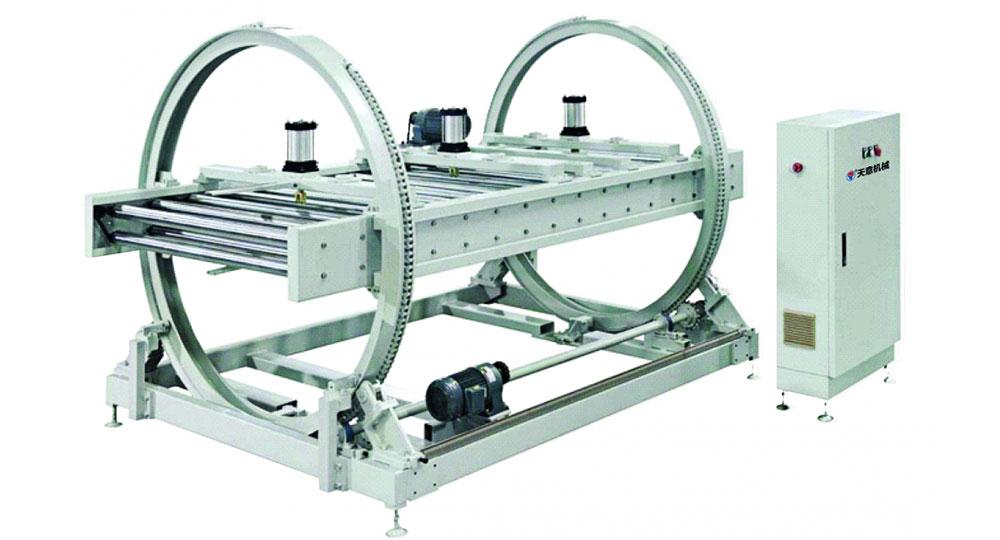

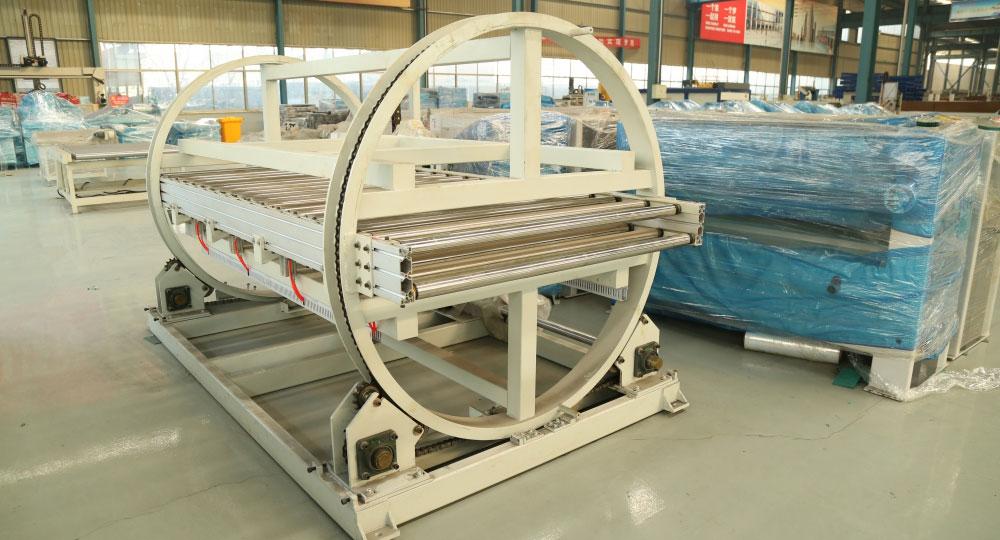

Automatic Flip Machine

Recommended application

Automatic flip machine is used in matching works for the 180 degree automatic flipping of panel workpieces such as plane door boards, cupboard side panels, calcium silicate boards, magnesium oxide boards and fiber cement panels.

Technical parameters
Working width 300-1250mm
Working thickness 5-80mm
Working pressure 0.4-0.6Mpa
Total weight 800kg
Working length 600-2500mm
Conveyor speed 1-20m/min
Total power 2.25kw
Machine size 3000*2800*2350mm

Index
conveying equipment, insulated wall panel, floor panel, furniture panel
