Thickness Sander Machine

Description

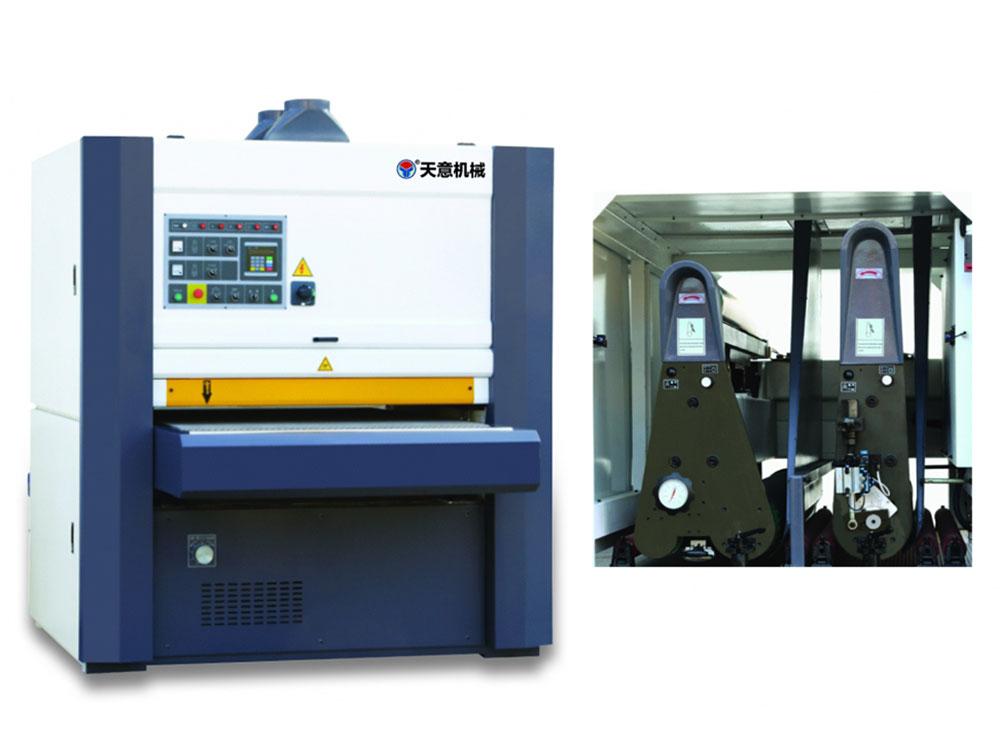

Dual shelf thickness sander machine is used in the thickness sanding process for the observe sides of plate-type plane workpieces, such as panel furniture, door panels, side panels of cupboards, solid wood compound floor panels, calcium silicate boards, magnesium oxide boards and fiber cement panels.
This machine is equipped with a lifting working platform and two sanding shelves, one of which adopts hard steel rollers and the other adopts 30o elastic synthetic rubber rollers with rebound memory function. So the sanding is more precise.

Technical parameters
Working width 30-1300mm
Working thickness 2-100mm
Feed speed 5-25m/min
Size of abrasive belt 1320×2200mm
Total motor power 56/63kw
Working air pressure ≧0.55Mpa
Speed of sucked air ≧25m/s
Overall dimensions 2262L×1983W×2130H mm

Index
panel polishing, insulated wall panel, floor panel, furniture panel
