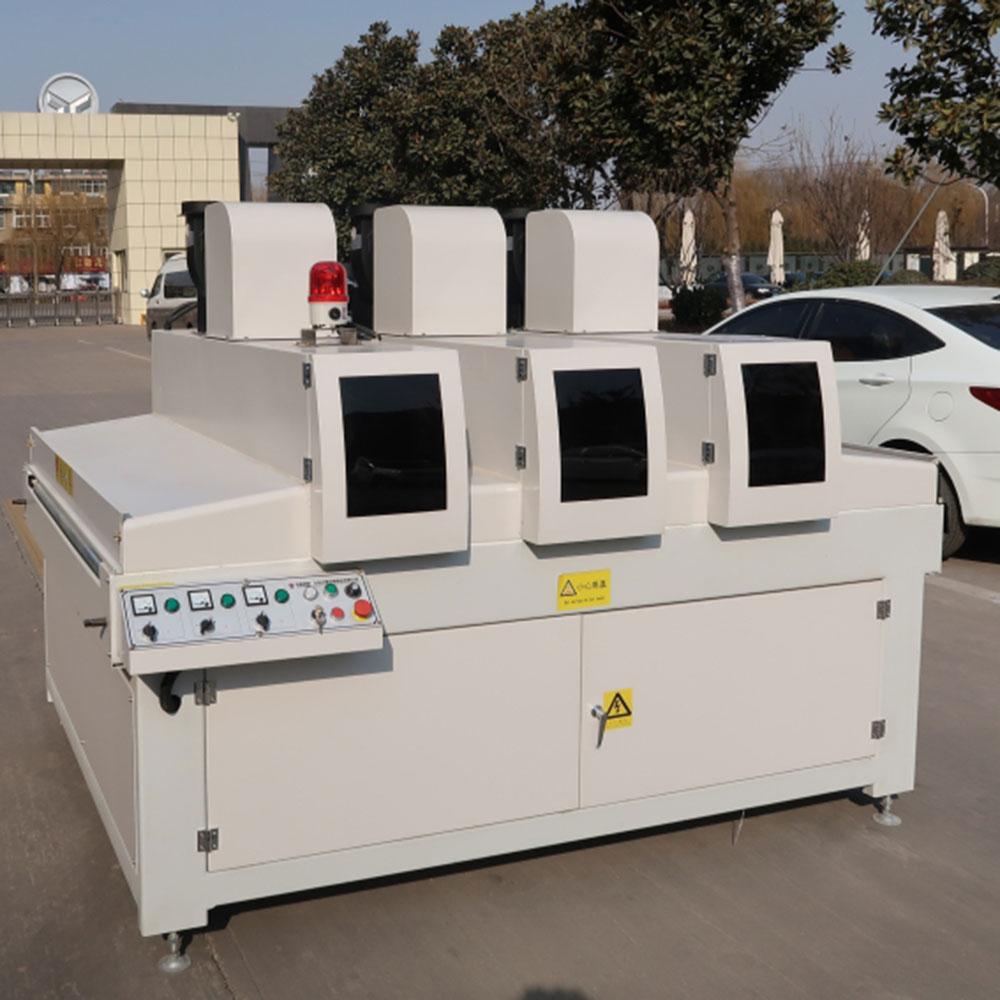

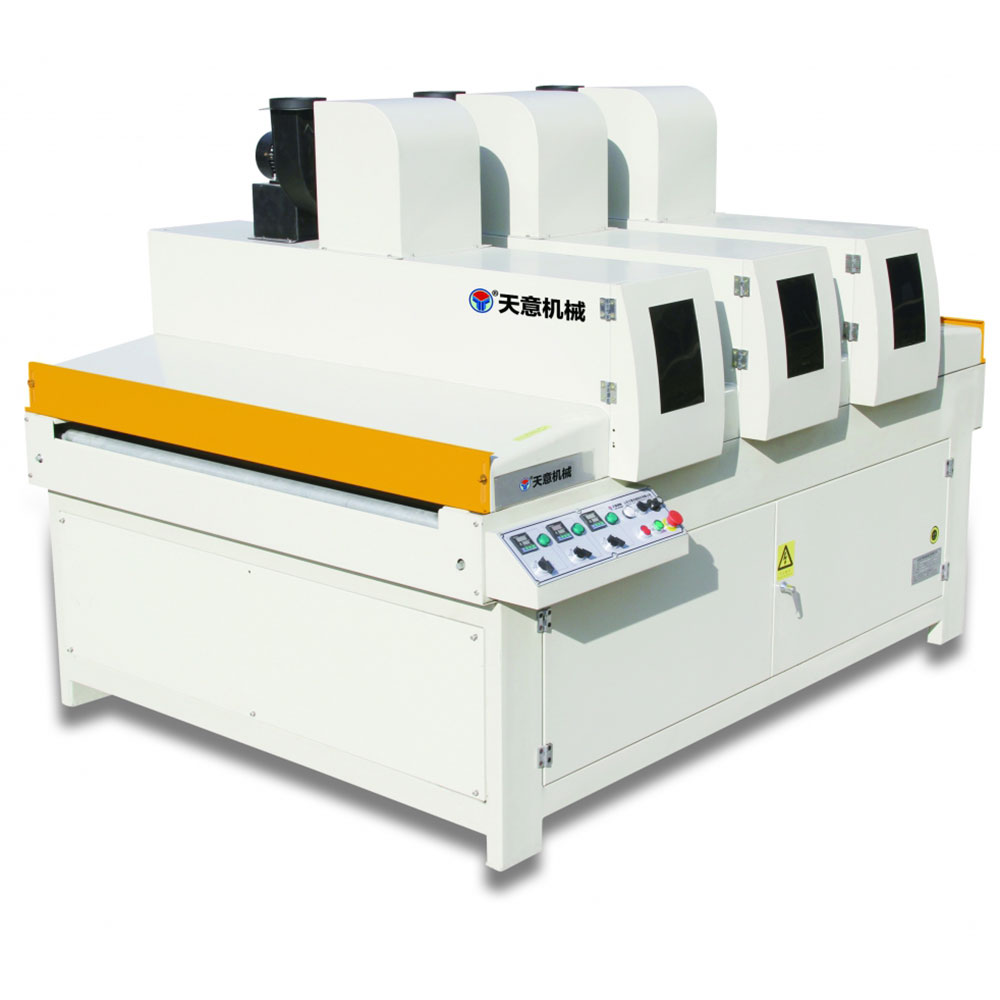

Triple UV Curing Machine

Recommended application

Triple UV curing machine, equipped with three sets of UV light tubes, is used for the instant drying and curing of UV paint coated plane special-shaped workpieces, such as decorative panels, panel furniture, cabinet boards, floor boards, plane doors, art works, blinds, calcium silicate boards and magnesium oxide boards.

Technical parameters
Working width 100-1250mm
Working thickness 5-80mm
Working pressure 0.4-0.6Mpa
Total weight 2500kg
Working length 350-2500mm
Conveying speed 5-20m/min
Total power 39kw
Total size 2300L×2450W×1750H mm
Features of triple UV curing machine
  • It adopts international advanced high pressure resistant UV light with adjustable intensity and imported reflection plate that can effectively reflect 99% of light.
  • High-strength capacitor and transformer largely improve the stability of UV light tubes.
  • It adopts stainless steel conveying belt or conveying roller, which have long service life. This conveying method can ensure good surface finish and more stable conveying.
  • It's equipped with cooling system and temperature controller to control the temperature inside the machine cabinet, so that it will not deform in long-term high temperature environment.
  • Shadow shield is equipped at exit and entrance of side board to effectively prevent the leakage of UV light.

Index
paint drying, insulated wall panel, floor panel, furniture panel
