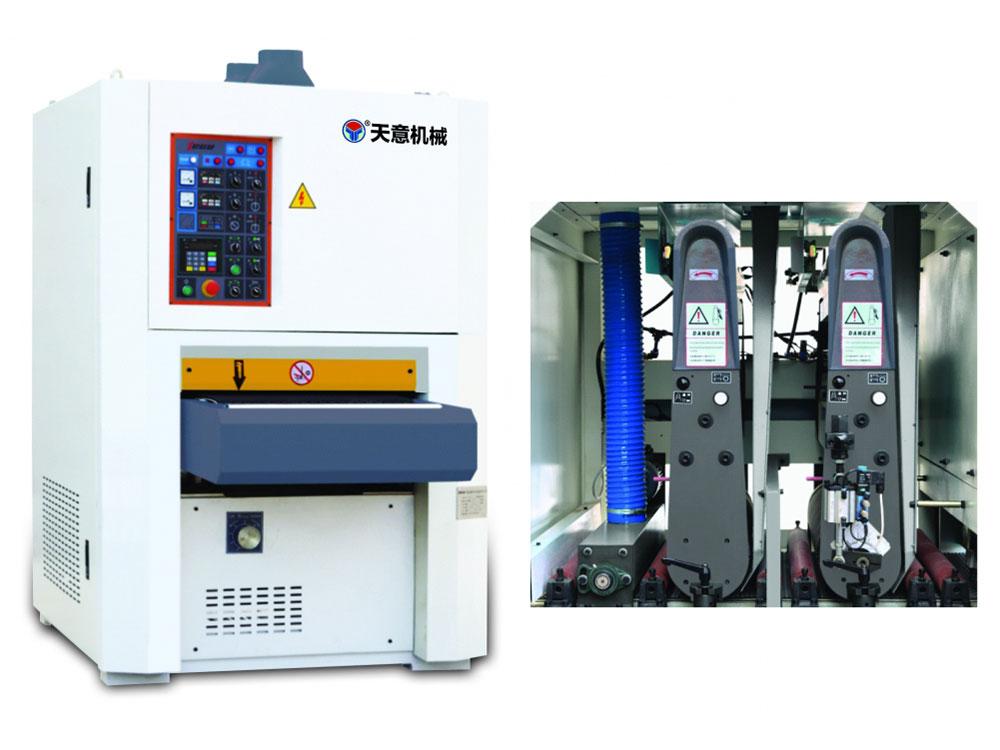

Double sanding and single polishing primer sander machine is used in the sanding process which follows paint coating process for plate-type plane workpieces, such as panel furniture, door panels, side panels of cupboards, solid wood compound floor panels, calcium silicate boards, magnesium oxide boards and fiber cement panels.
This machine is equipped with two sets of sanding rubber rollers and a polishing roller. The two sets of the rubber rollers adopt 35o and 60o elastic synthetic rubber with rebound memory function, respectively and the polishing roller is produced by American 3M company.
Working width | 30-1300mm |
Working thickness | 2-100mm |
Abrasive belt speed | 3-16m/s, frequency control |
Feed speed | 5-25m/min |
Size of abrasive belt | 1320×2200mm |
Total motor power | 26kw |
Working air pressure | ≧0.55Mpa |
Overall dimensions | 2175×1983×2145 mm |
Index
panel polishing, insulated wall panel, floor panel, furniture panel
