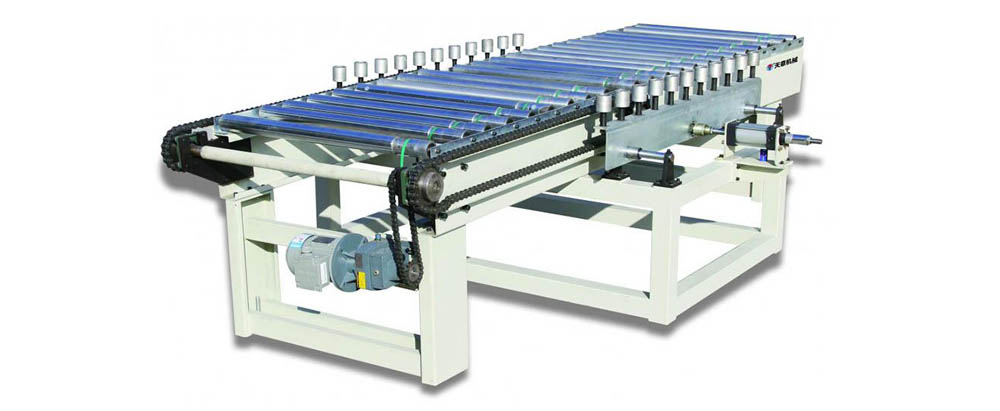

Automated Center Pushing Conveyor

Recommended application

Automated center pushing conveyor is used for the automatic mounting of products that need to be mounted to dry, such as plane workpieces, including decorative panels, calcium silicate boards and magnesium oxide boards, that are sprayed with NC, PU and water-based paints.

Technical parameters
Working width 100-1250mm
Working thickness 5-80mm
Working pressure 0.4-0.6Mpa
Total weight 900kg
Working length 350-2500mm
Conveyor speed 5-20m/min
Total power 1.5kw
Machine size 3450L×2100W×850H mm

Index
conveying equipment, insulated wall panel, floor panel, furniture panel
