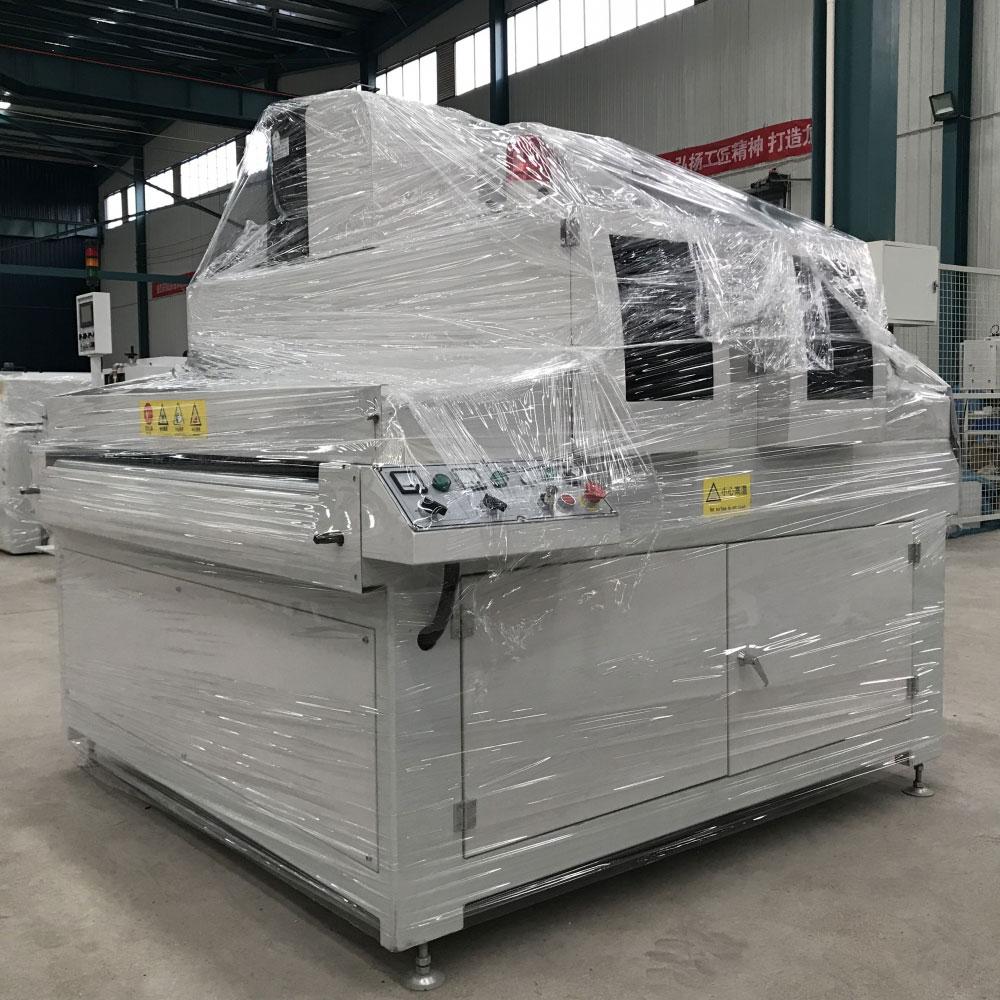

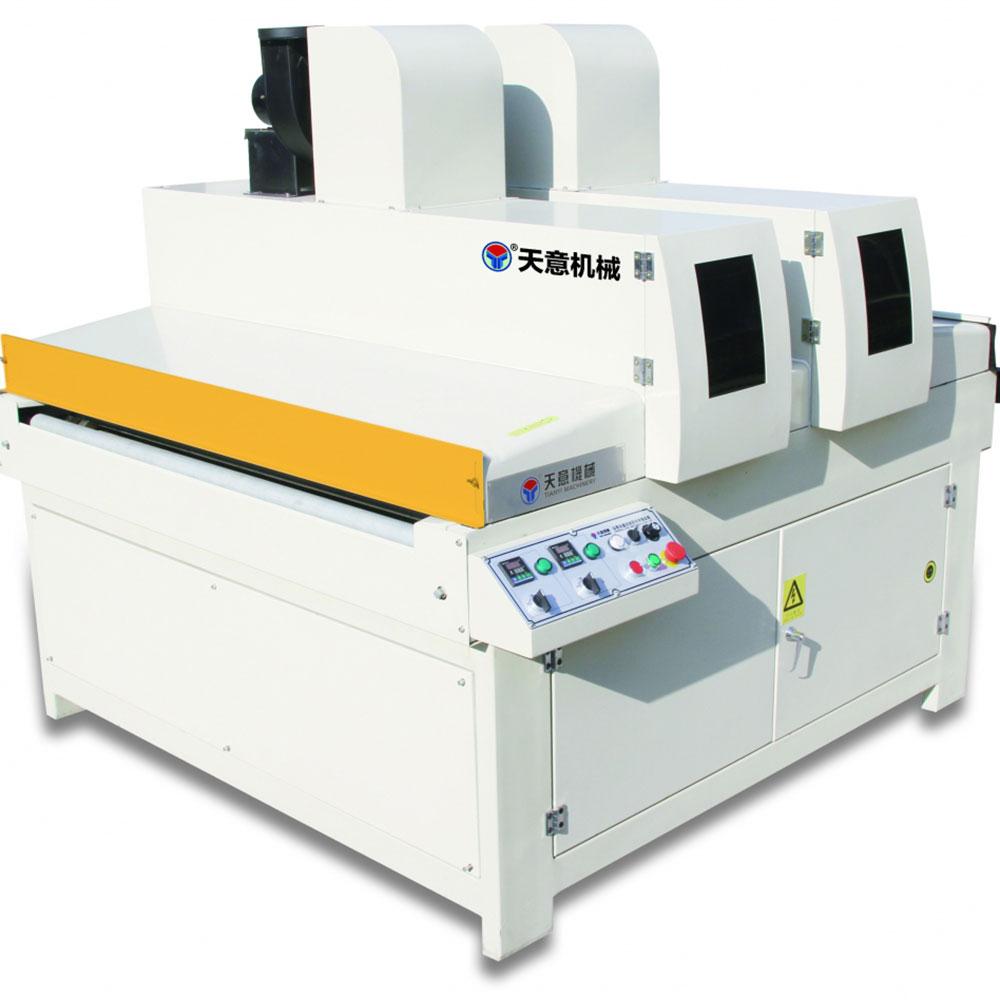

Double UV curing machine, equipped with two sets of UV light tubes, is used for the instant drying and curing of UV paint coated plane special-shaped workpieces, such as decorative panels, panel furniture, cabinet boards, floor boards, plane doors, art works, blinds, calcium silicate boards and magnesium oxide boards.
|Working width ||100-1250mm |
|Working thickness ||5--80mm |
|Working pressure ||0.4-0.6Mpa |
|Total weight ||1500kg |
|Working length ||350-2500mm |
|Conveying speed ||5-20m/min |
|Total power ||26kw |
|Total size ||1800L×2450W×1750H mm |
Features of double UV curing machine
- It adopts international advanced high pressure resistant UV light with adjustable intensity and imported reflection plate that can effectively reflect 99% of light.
- High-strength capacitor and transformer largely improve the stability of UV light tubes.
- It adopts stainless steel conveying belt or conveying roller, which have long service life. This conveying method can ensure good surface finish and more stable conveying.
- It's equipped with cooling system and temperature controller to control the temperature inside the machine cabinet, so that it will not deform in long-term high temperature environment.
- Shadow shield is equipped at exit and entrance of side board to effectively prevent the leakage of UV light.
paint drying, insulated wall panel, floor panel, furniture panel
