  3. Construction Wall Panel Production Plant
  4. TYF-16A Construction Wall Panel Production Plant

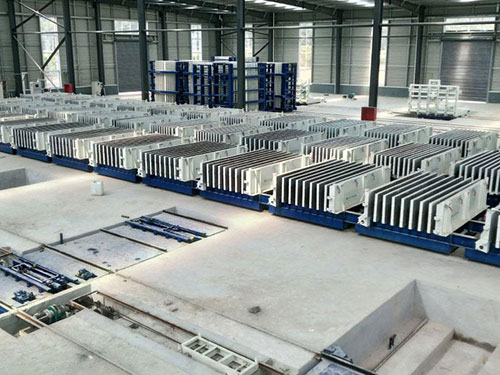

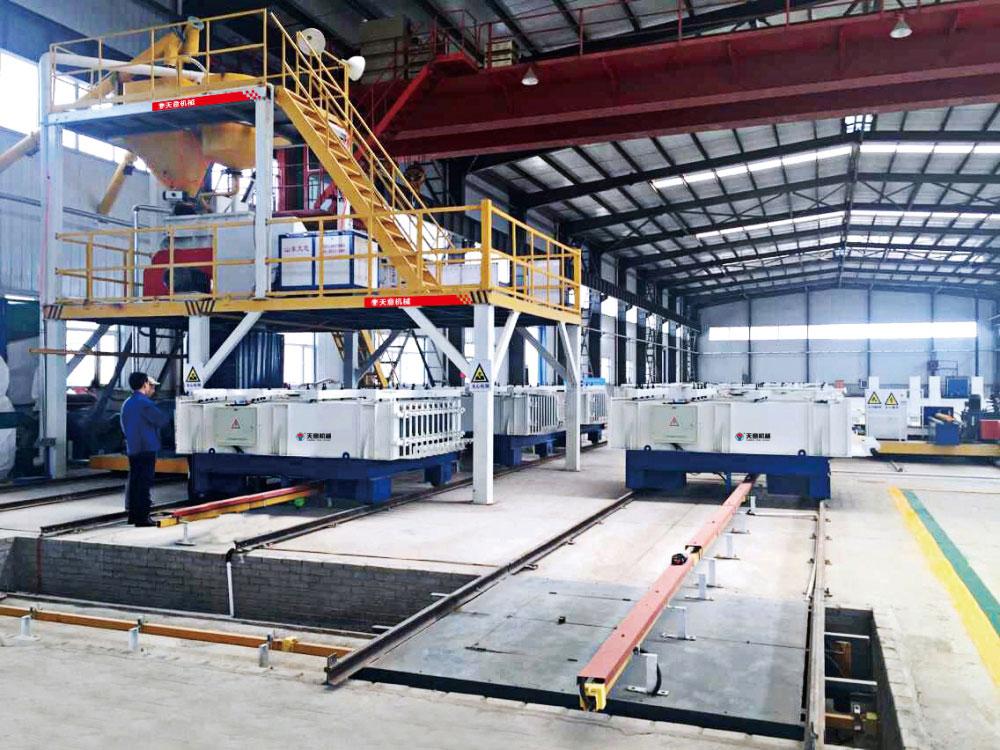

TYF-16A Construction Wall Panel Production Plant (Mobile Type, Calcium Silicate Board Compound Wall, GRC Glass Reinforced Concrete Panel)

Description

TYF-16A horizontal construction wall panel production plant is applicable for the production of two-side calcium silicate board lightweight compound wall panel or GRC lightweight wall panel and the suitable materials include cement, fly ash, EPS polystyrene particles, sand and ceramsite. 10 pieces of panels can be molded one time.

Due to the mobility of equipment, the arrangement of production line is not easy to be limited and the line is highly automatic, which can save labor and increase production.

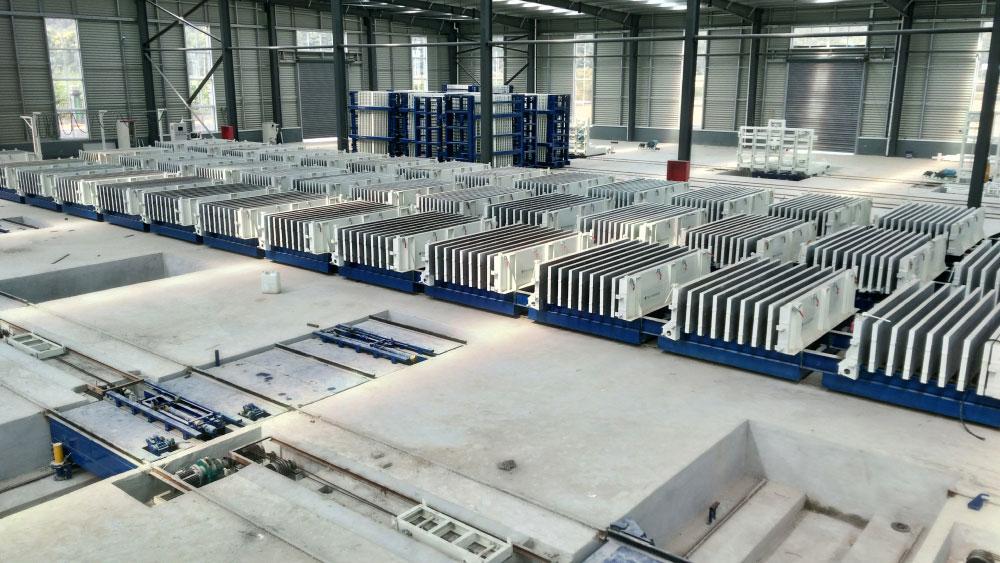

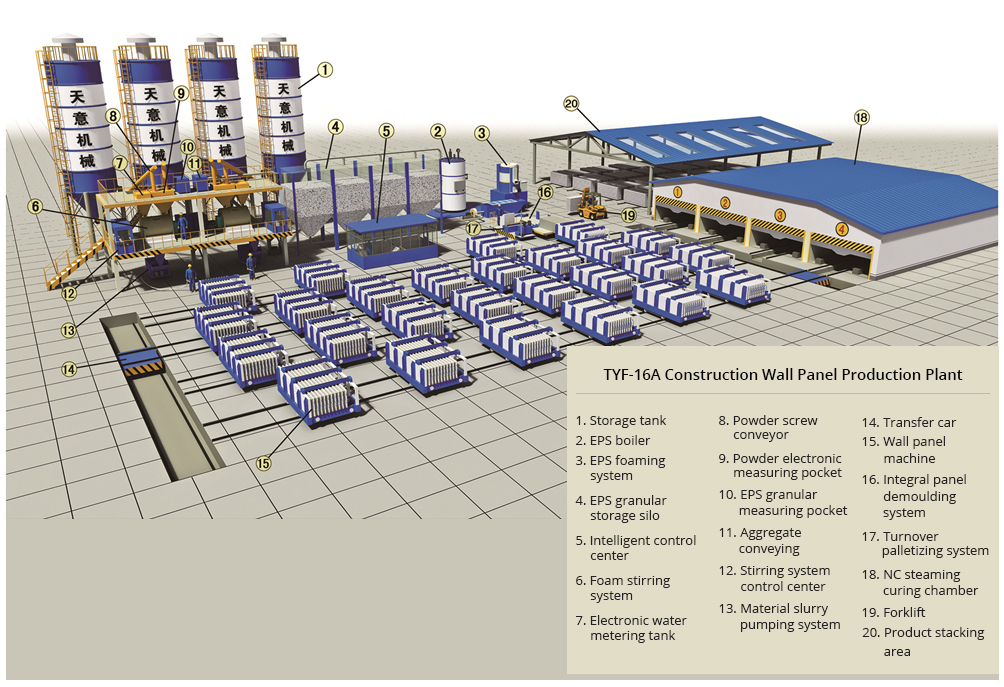

The whole production line is composed of automatic batching system, stirring system, foaming system, NC power distribution system, wall panel molding system, material slurry pumping system, EPS pre-foaming system, hydraulic circulating system and integral panel demoulding system.

Patent number: ZL201320713155.0

Specifications of produced wall panels
(1) Lightweight compound wall panel
One-time molding quantity Thickness Width Length
10 75mm 610mm 2440mm/3000mm
10 90mm
8 120mm
6 150mm
(2) Lightweight hollow wall panel
One-time
 molding
quantity 		Core tube
diameter 		Core
 tubequantity 		Thickness Width Length
10 Φ38mm 90 75mm 600/610mm Adjustable within 3000mm
10 Φ52mm 70 90mm
8 Φ74mm 40 120mm
6 Φ52mm 84 150mm

Note: The above dimensions are normal ones. TANY can provide customized production lines according to your requirements for special wall panel sizes.

Component equipment

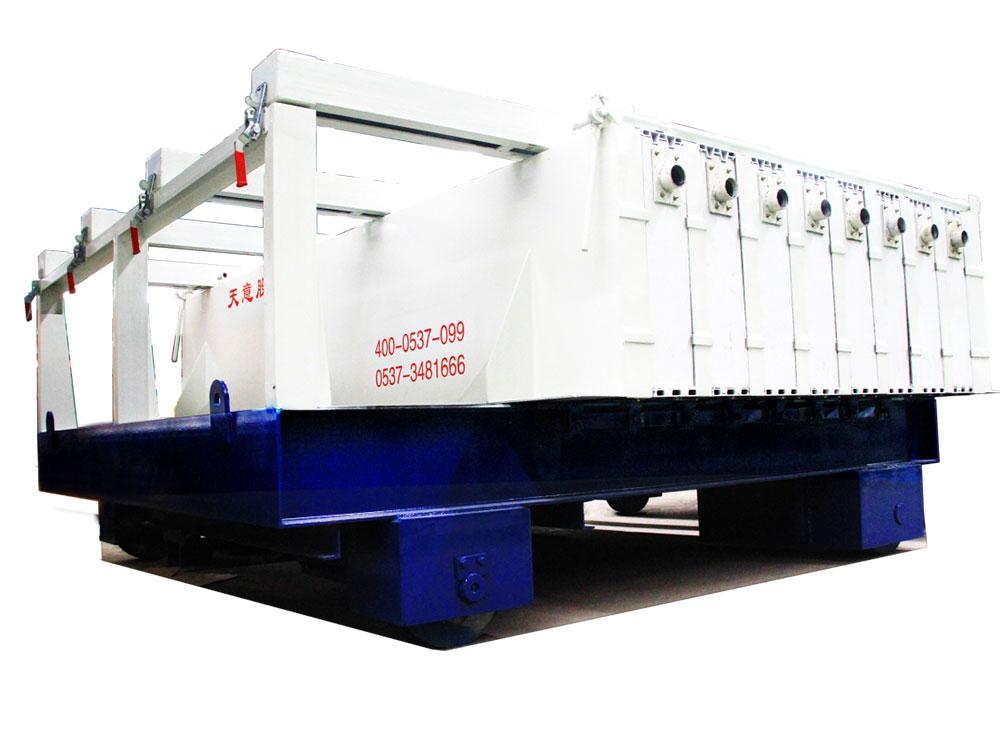

  • (1) TY11 prestressed wall panel machine

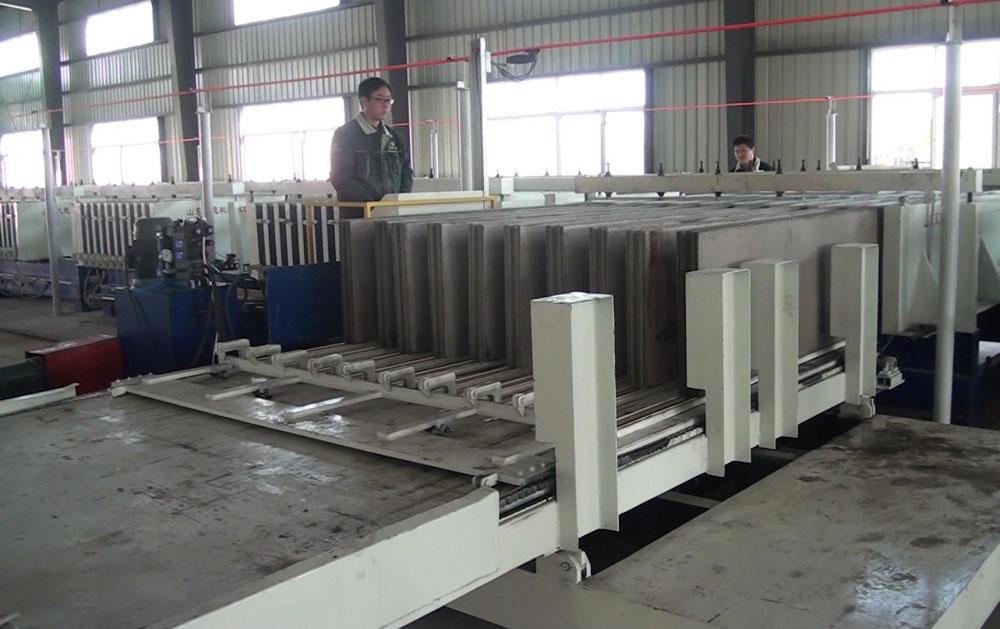

    TY11 prestressed wall panel machine is composed of principal machine, hydraulic system, power system, heating system, vibration system and core tubes. It can move automatically and show high molding efficiency.

    View Parameters

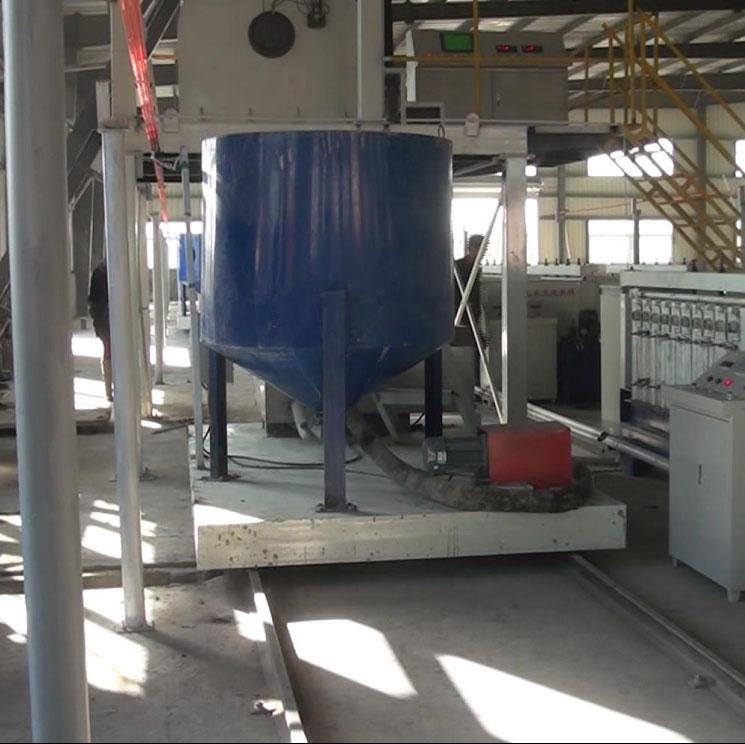

  • (2) Stirring system

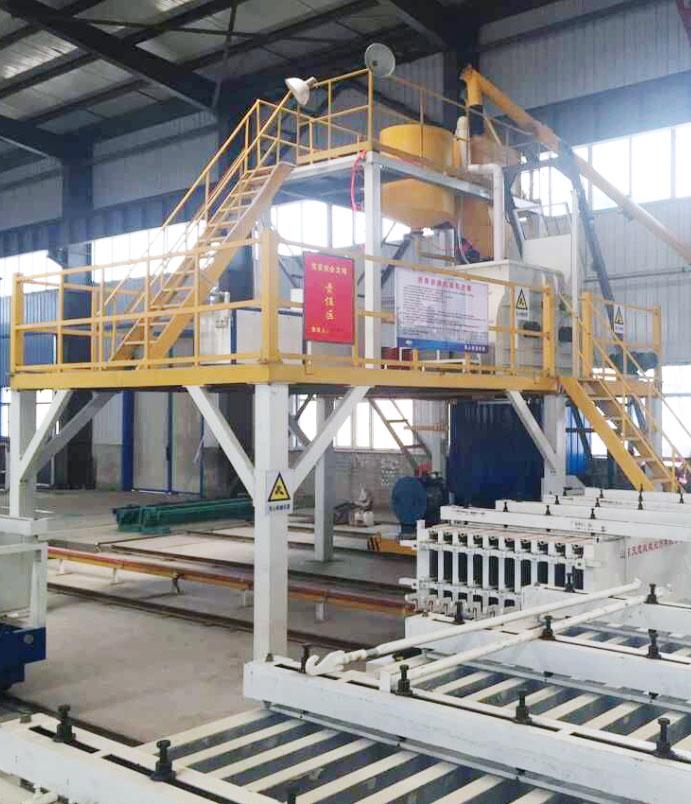

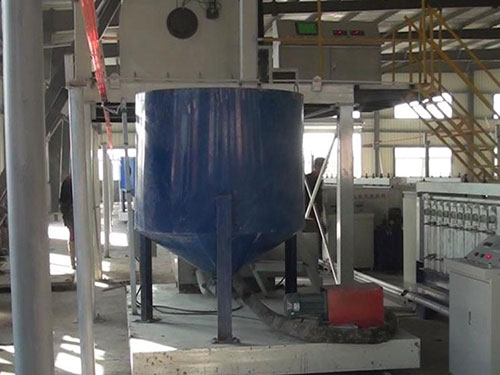

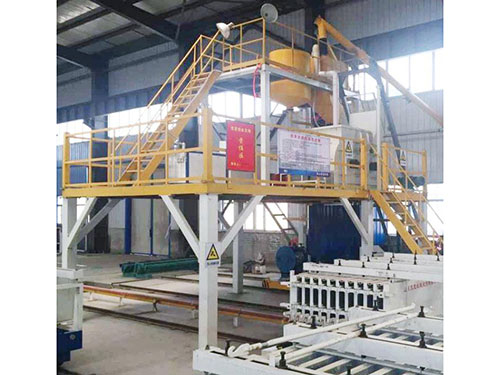

    Our independently developed large stirring equipment is equipped with precise automatic batching system which can precisely feed and can also stir the slurry more uniformity based on the material properties.

    View Parameters

  • (3) Mobile grouting system
    Material slurry pumping system conveys stirred slurry to equipment more uniformly and more stably, and the grouting mode is simple and convenient.

    View Parameters

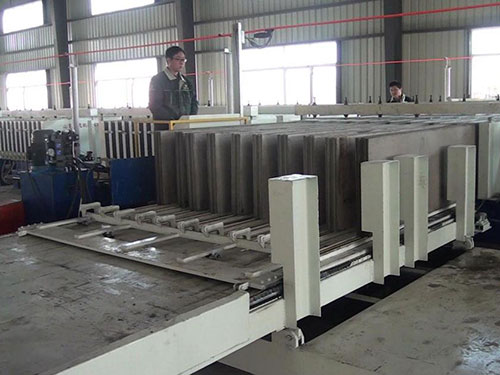

  • (4) Mobile automatic stacking machine (Panel demoulding)

    View Parameters

(5) Other equipment

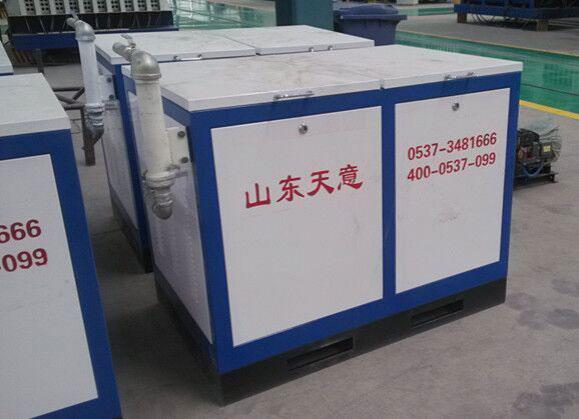

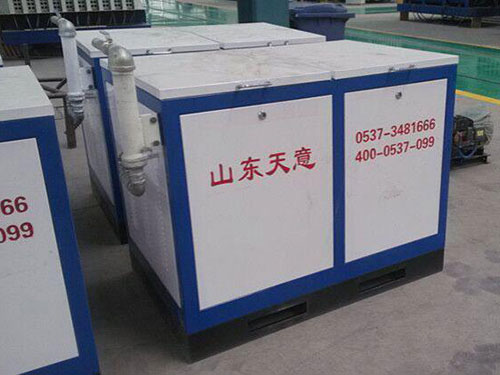

  • Foaming machine
    The foaming system adopts frequency conversion foaming technology that can increase foaming speed and save raw materials. 40m³ foam can be produced one time.
    Dimension: 1200L×800W×940H mm
    Power: 2.2kW

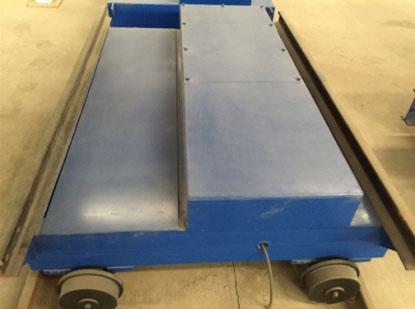

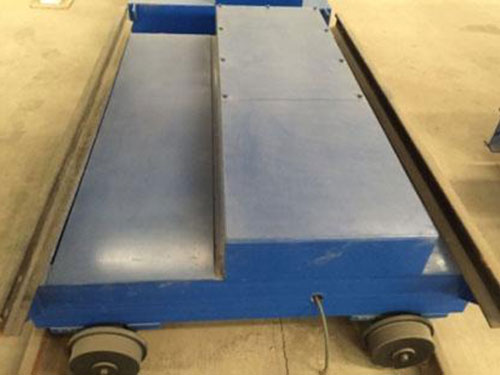

  • Transfer car
    Dimension: 2000L×1300W×480H mm
    Power: 2.2kW
