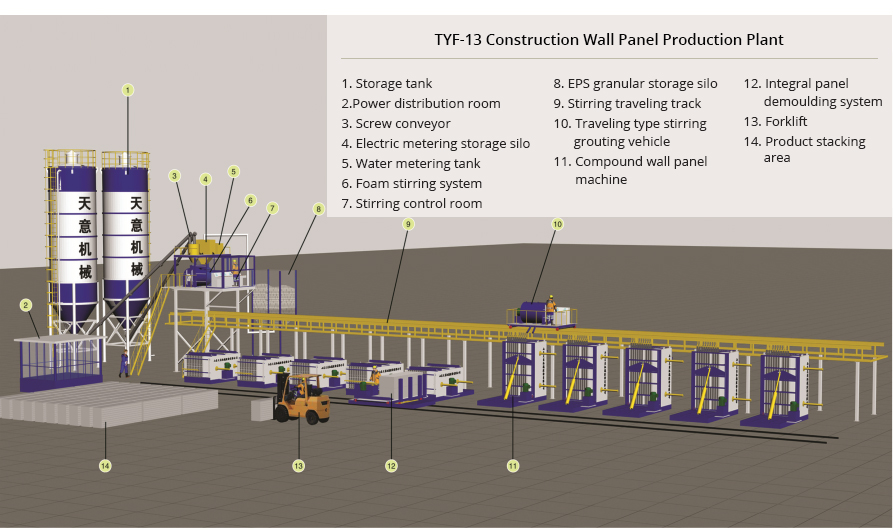

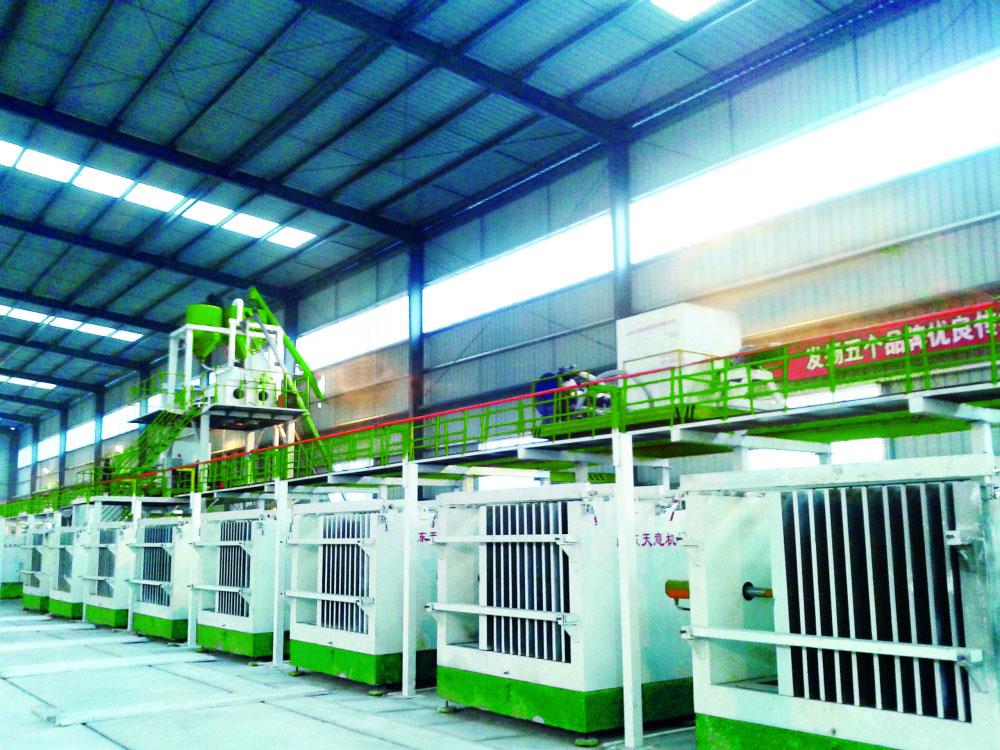

TYF-13 Construction Wall Panel Production Plant

Description

TYF-13 construction wall panel production plant is mainly used to produce various specifications of GRC lightweight wall panels and magnesite wall panels. The suitable materials include cement, sand, fly ash, magnesite, ceramsite and EPS polystyrene particles. Cement can be cured in totally sealed pressure environment, making the hydration reaction more ideal and thus getting higher strength.

This production line adopts PLC control system during the processes from batching, stirring, pumping to demoulding, ensuring the precise batching and uniform stirring. Besides, the labor cost is reduced and the production efficiency is improved.

Patent number: ZL201320012681.4

Specifications of produced wall panels
One-time molding quantity Thickness Width Length
20 75mm 610mm 2440/3000mm
20 90mm
16 120mm
12 150mm

Note: The above dimensions are normal ones. TANY can provide customized production lines according to your requirements for special wall panel sizes.

Main equipment

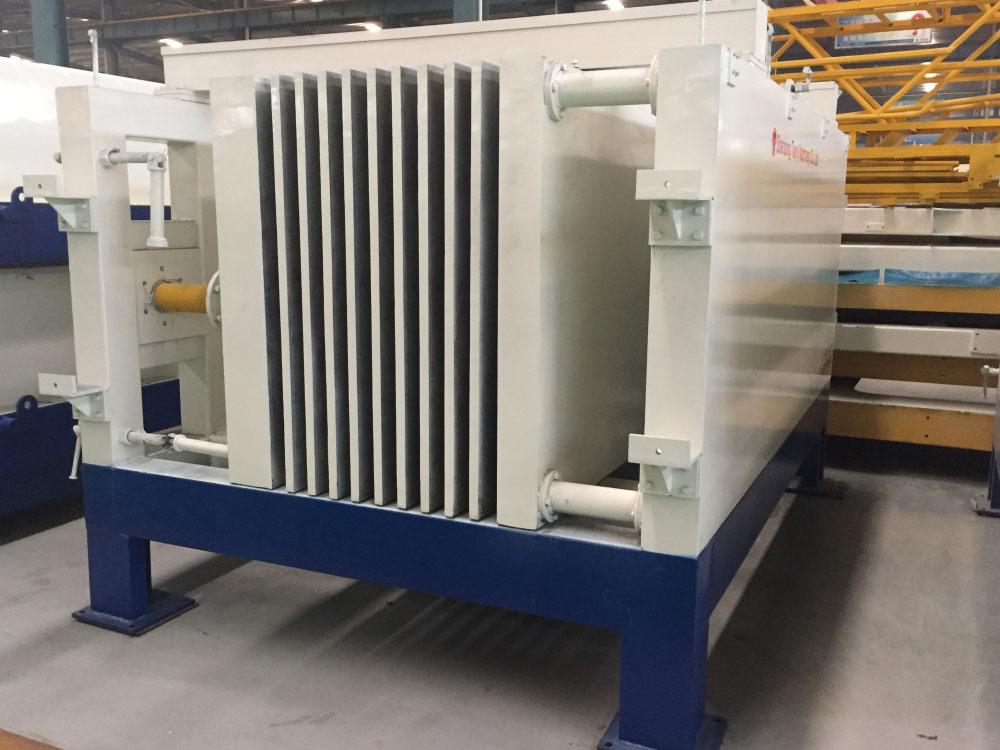

  • TYF13 wall panel machine
    TYF13 wall panel machine is highly automatic and the production efficiency is high with 20 pieces of panels produced one time. It adopts hydraulic mold opening and closing design so that the panels can demould at one time, which can avoid the panel damage during demoulding process and ensure the stability of product quality.
    The side board of the machine is made of special steel sheet, increasing the equipment service life of production line.

    View Parameters

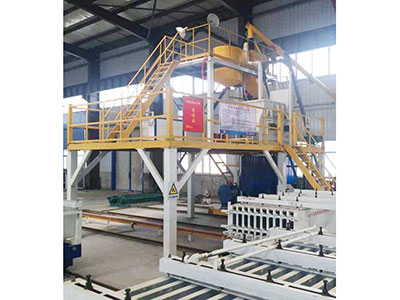

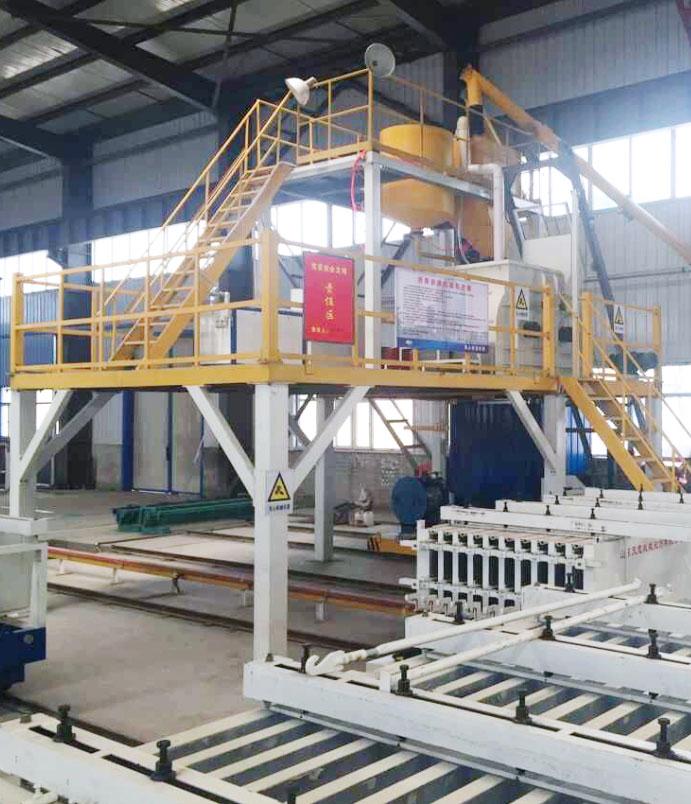

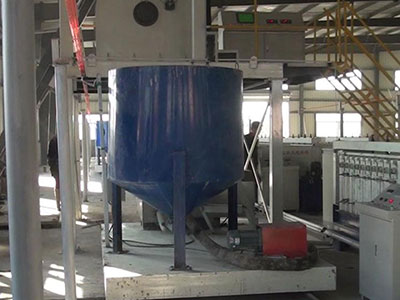

  • Stirring system
    Our independently developed large stirring equipment is equipped with precise automatic batching system which can precisely feed and can also stir the slurry more uniformity based on the material properties.

    View Parameters

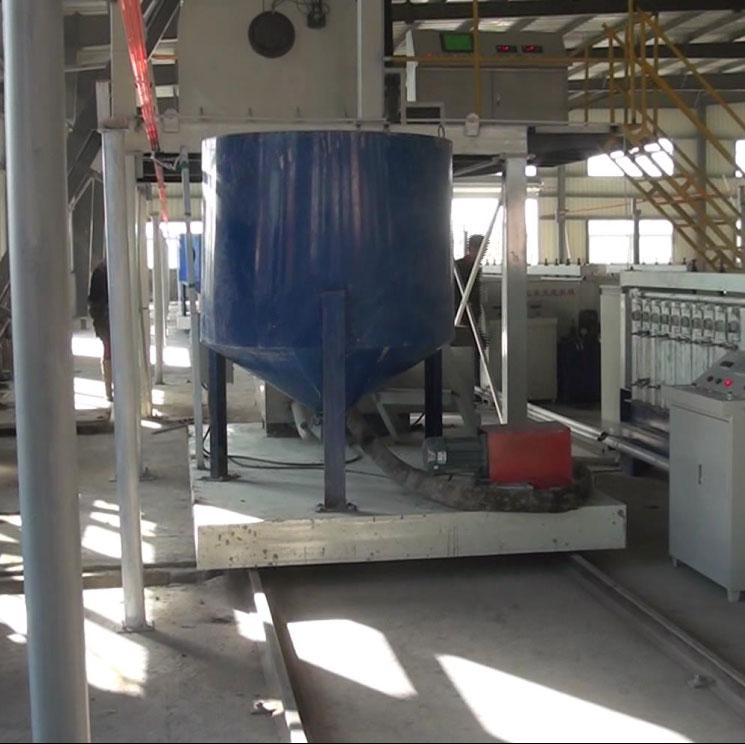

  • Mobile grouting system
    Sealed pumping grouting system can increase the grouting speed and increase the density.

    View Parameters

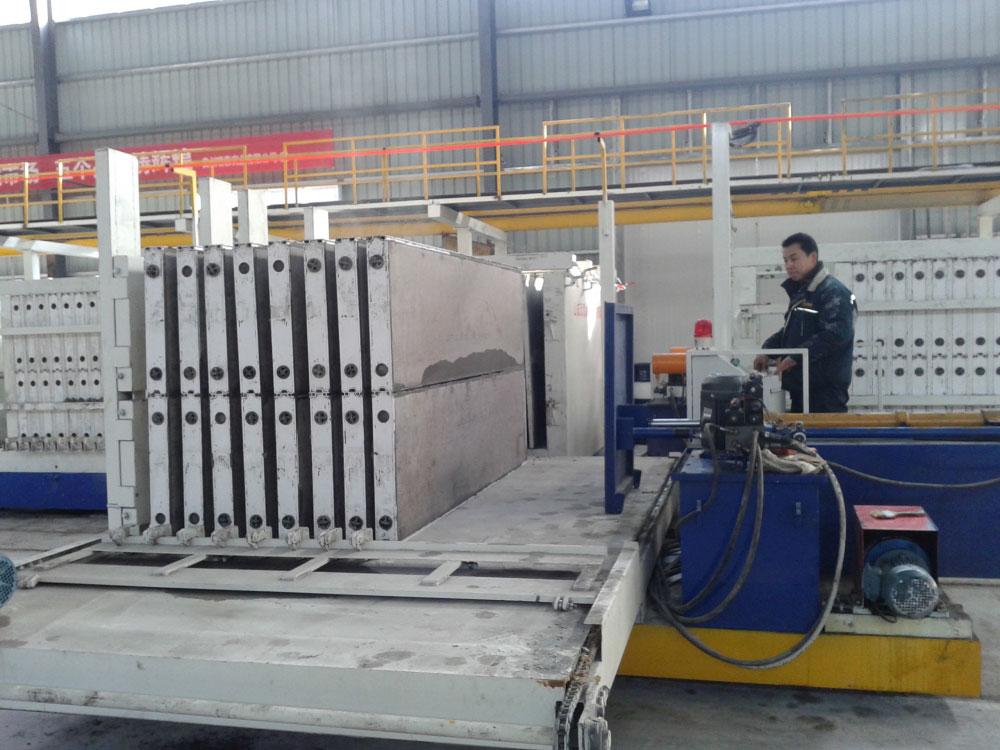

  • Automatic stacking machine
    The demoulding system hydraulically flips the wall panels by 90 degrees, making it convenient for packaging and forklift transfering. Compared with traditional manual demoulding method, this can largely decrease the breakage rate of products.

    View Parameters
