TYF-17 sandwich wall panel production line is a multifunctional production line. It can be used to produce sandwich wall panels, steel frame roof panels, floor slabs, and compound panels without surface board.
This production line is mainly composed of automatic batching system, stirring system, foaming system, central control system, lightweight concrete distributing system, polishing system, mold circulating system, curing system and stacking system.

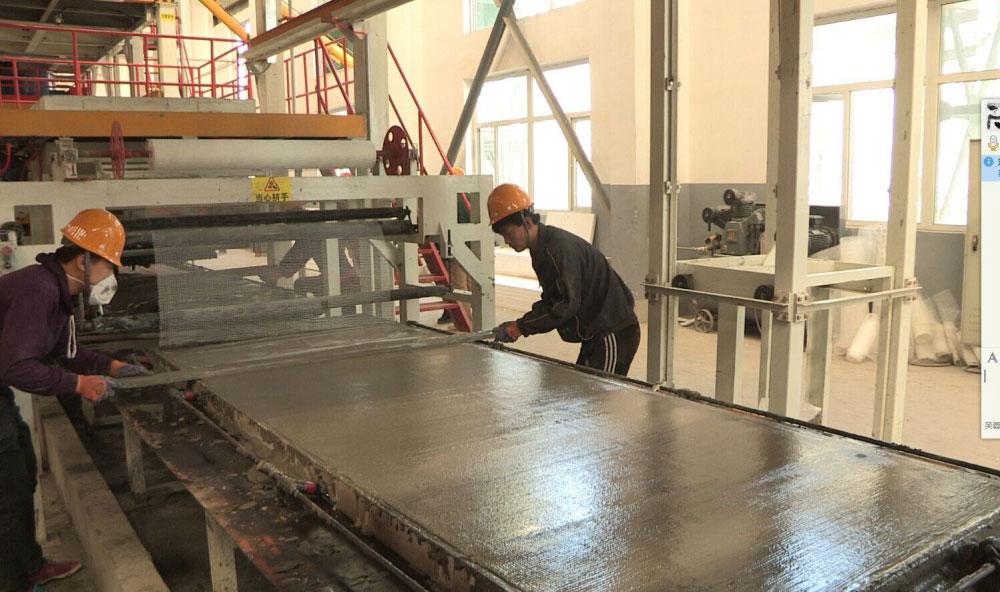

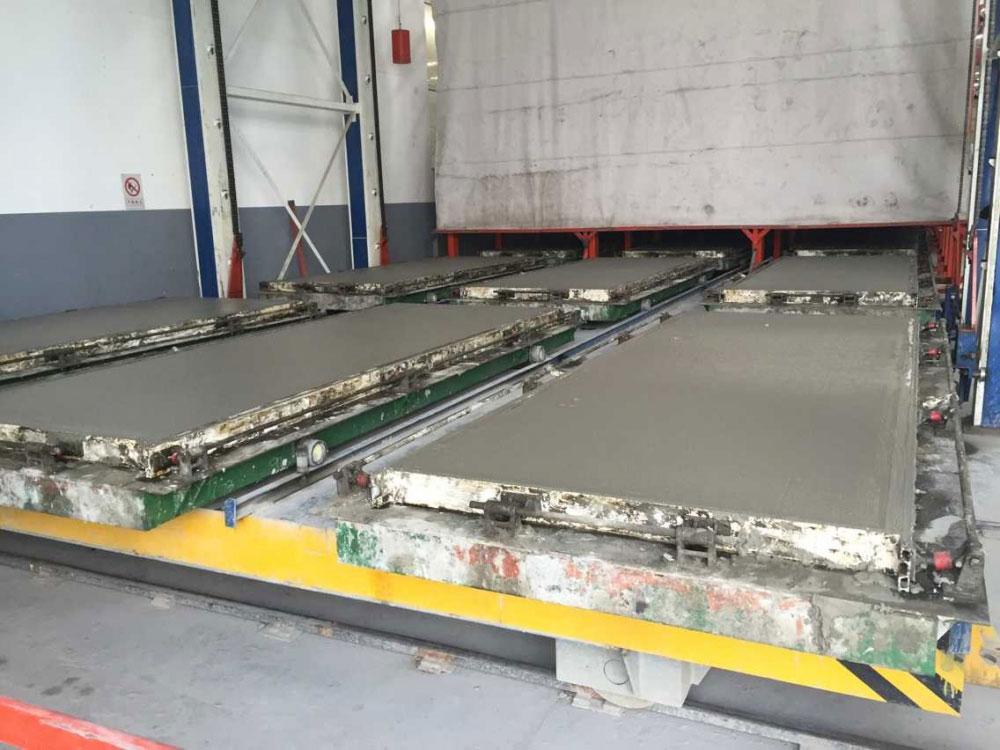

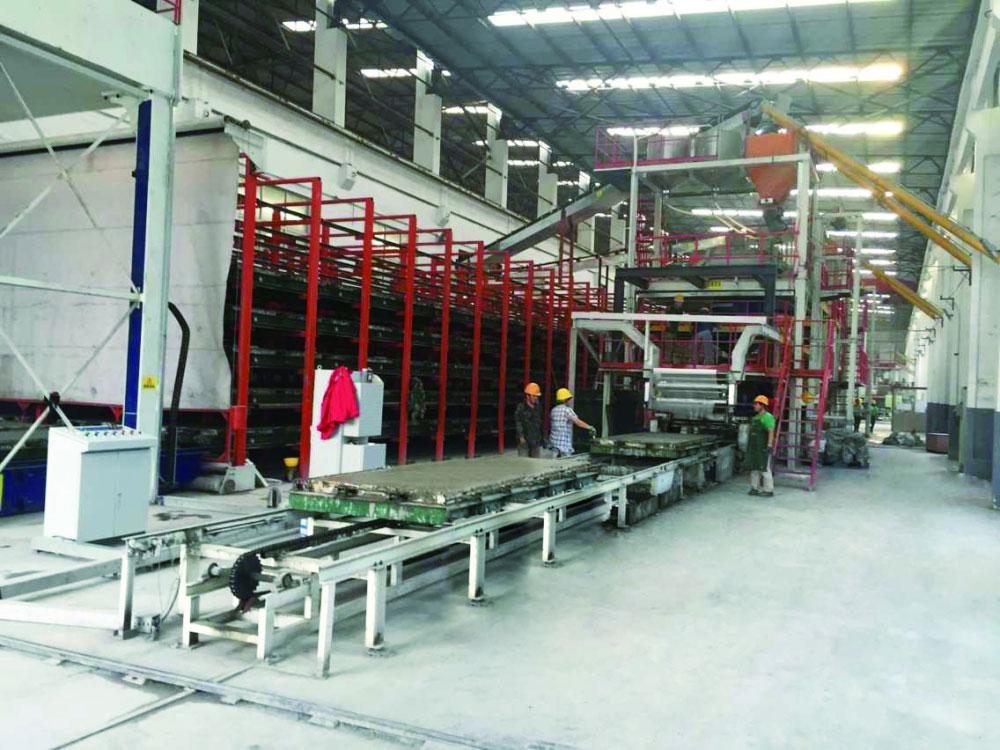

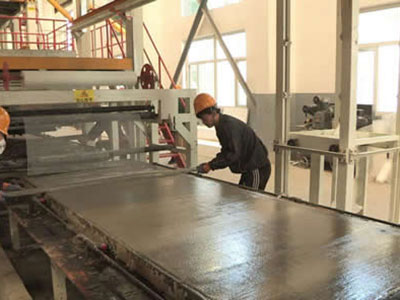

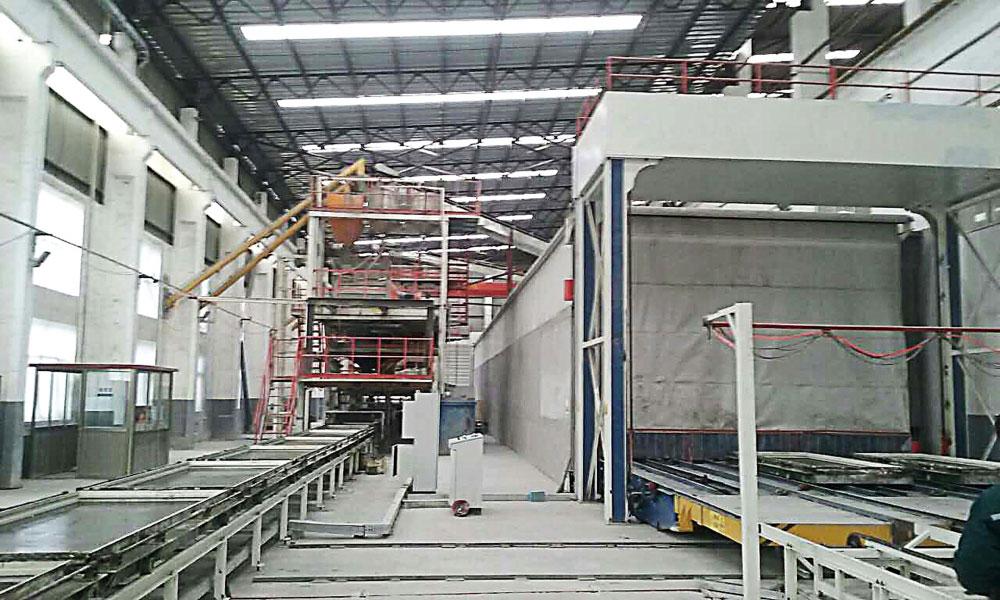

Jidong group production site
Automatic metering Automatic feeding Stirring Automatic discharging The first distributing Cloth net Cloth core material Pre-curing chamber Cloth Cloth net Smoothing Curing chamber Side mold disassemblingOffline stacking
Specifications of produced wall panels
|Thickness ||Width ||Length |
|75mm ||600mm/1200mm ||Adjustable within 3000mm |
Note: The above dimensions are normal ones. TANY can provide customized production lines according to your requirements for special wall panel sizes.
(1) Conveying system
(2) Offline manipulator equipment
|Vertical operating motor power ||23.1kw |
|Vertical operating speed ||23.76m/min |
|Horizontal operating motor power ||0.75kw |
|Horizontal operating speed ||6.25m/min
|Operating motor power ||0.75kw |
|Operating speed ||13.9m/min |
|Lifting motor power ||1.5kw |
|Lifting speed ||9.13m/min
|Reducer power ||2.2kw |
|Operating speed ||26.47m/min |
|Positioning reducer power ||0.75kw
- Flat mould wall panel production line can be used for multifunctional production. The produced wall panels, with various specifications, can be widely used in interior walls,exterior walls, roof panels and floor slabs.
- The mould is made of aluminium alloy with concave-convex surface on 4 sides, which can effectively ensure the regular shape of products.
- The products after moulding are directly conveyed to curing chamber to be cured. The whole line is highly automatic.
- TYF-17 sandwich wall panel production line can save labor and realize higher output that can reach 300,000 m2 every year.
