TYFZ16 Construction Wall Panel Production Plant (Vertical Rotating Type, Lightweight Compound Wall Panel)

Description

TYFZ16 construction wall panel production plant is applicable for batch production of lightweight compound wall panel with calcium silicate board on its both sides. Applicable materials include cement, fly ash, EPS polyphenyl granule, sand, ceramsite, etc. It can produce 40 pieces of wall panels per batch.

The system adopts hydraulic open/closed molding, which avoids potention risks that often exists in manual open/closed molding for traditional vertical type. Moreover, it realizes high automation of whole line running, which greatly improves working efficiency.

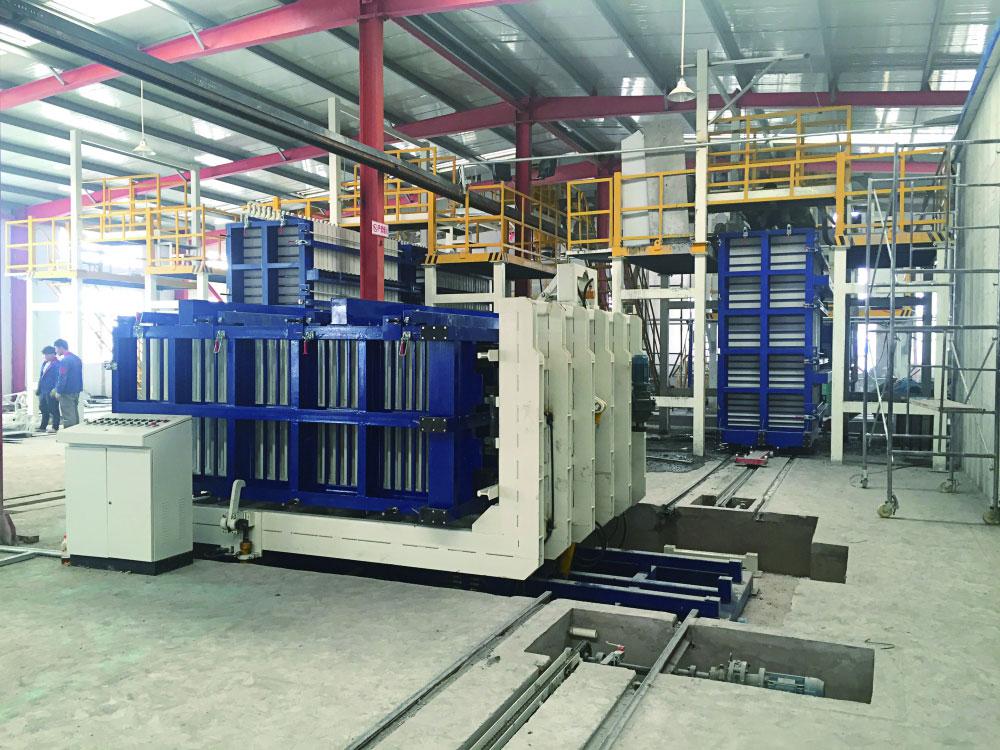

Main system consists of batching mixing system, precast wall panel system, hydraulic whole open molding system, hydraulic rotating system, whole wall panel ejecting, rotating and stacking system, precast wall panel automatic cycling system, frequency conversion shuttle system, numerical control power distribution system.

Work Flow
Mold assembly Automatic measuring Mixing Slip casting Mold car moving Shuttle Wall panel rotating car rotating Automatic wall panel ejecting Automatic rotating Forklift lifting Packing and stacking
Dimension of wall panel
Output per batch
 Thickness Width Length
40
 75mm 610mm 2440mm/3000mm
40
 90mm
32
 120mm
26
 150mm

Note: The dimensions above are normal dimensions. Tianyi also provides customized production line to meet your special needs for wall panel.

Main Equipment:

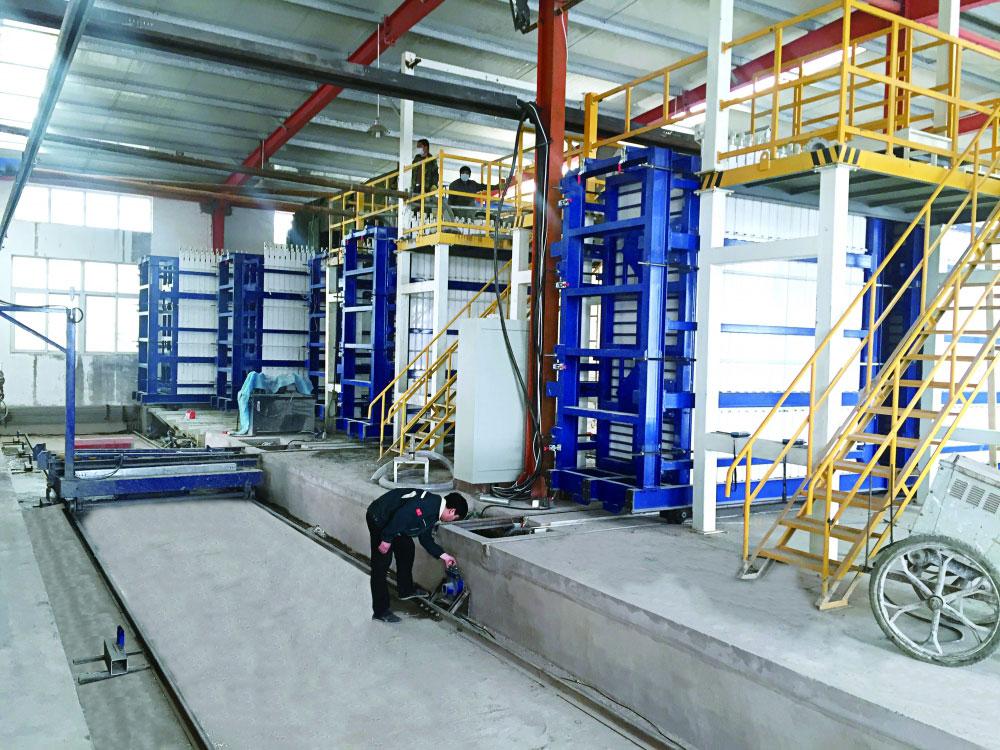

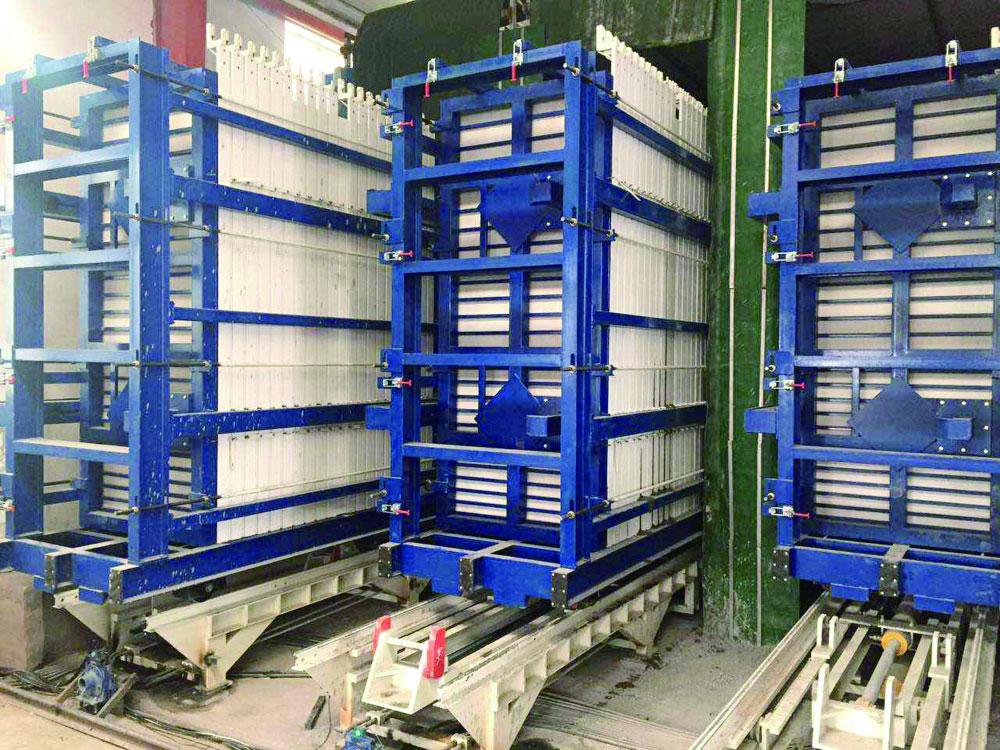

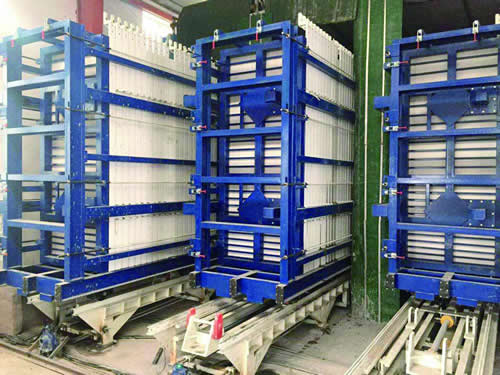

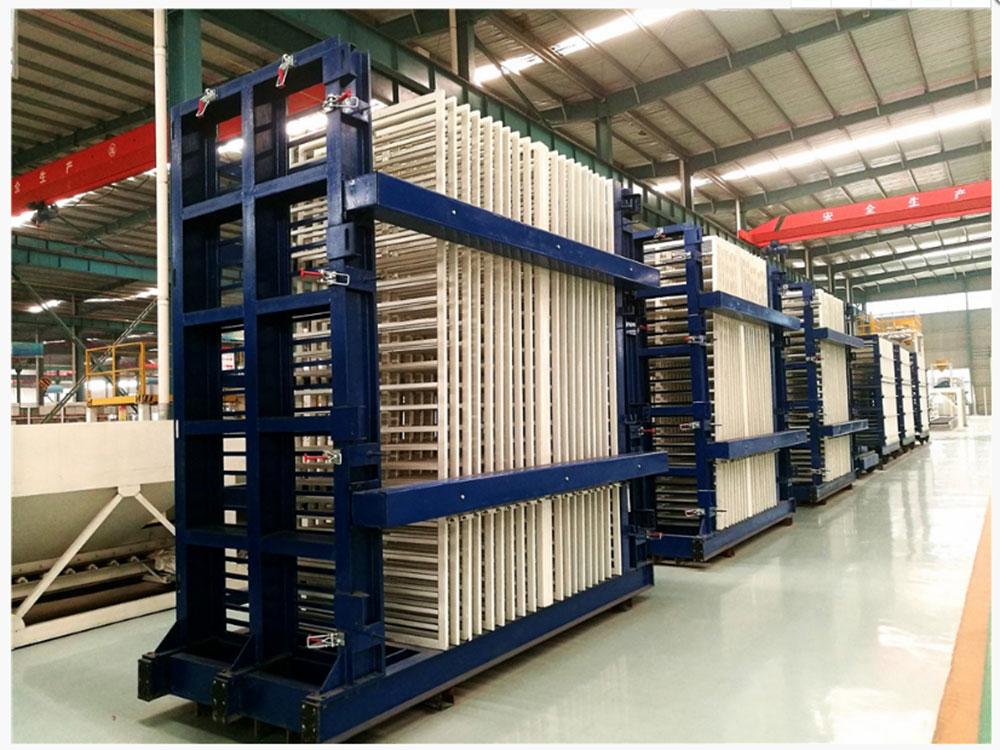

  • (1) TYF01 Vertical Precast Wall Panel Machine
    TYF01 vertical precast wall panel machine is equipped with automatic moving conversion system. It has advantages of simpler and faster operation, and large output. It can produce 40 pieces of wall panels per batch.

    View Parameters

  • (2) Weighing System
    Weighing system can automatically weigh cement and other materials with great accuracy and easy operation.

    View Parameters

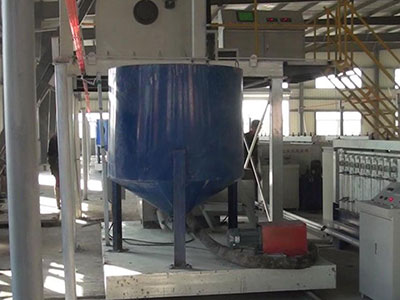

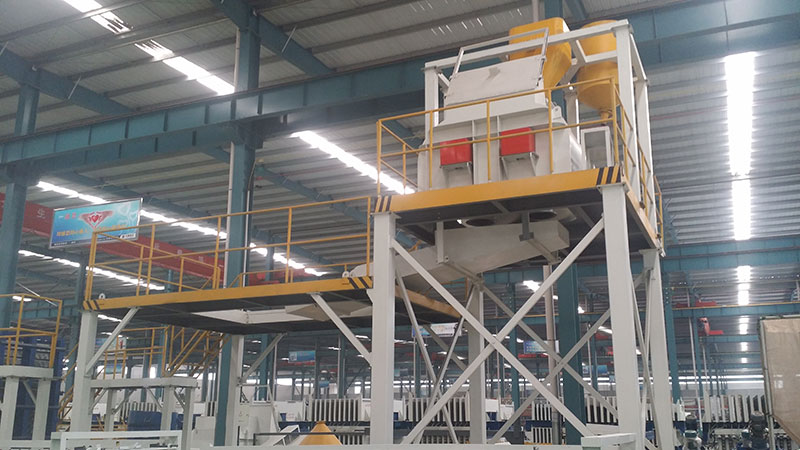

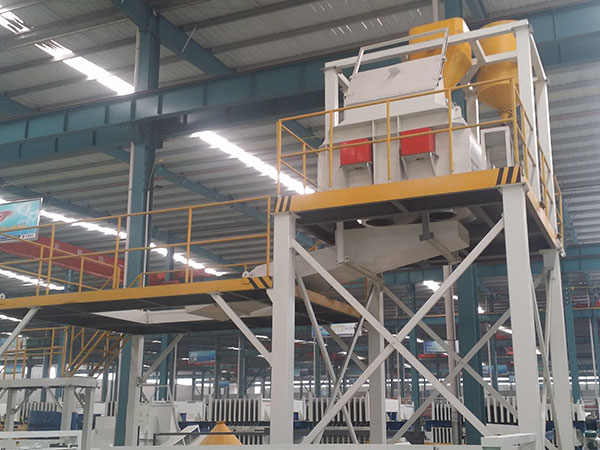

  • (3) Mixing System
    Large-scale fixed mixing equipment can give a more uniformed mixing slurry and higher slip casting effciency.

    View Parameters

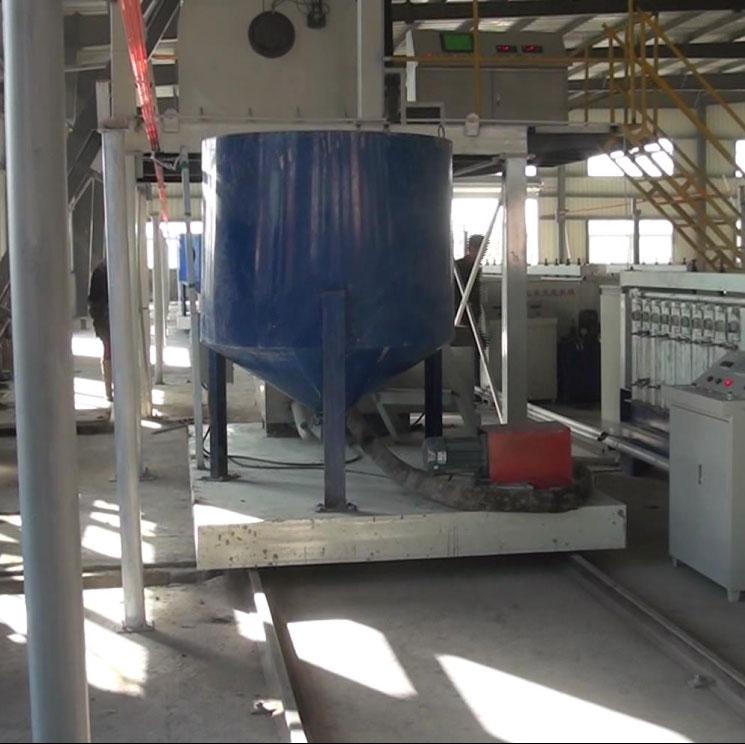

  • (4) Mobile Slip Casting System
    Pumping pipes are sealed and equipped with two-station slip casting guns. It has advantages of fast slip casting and high degree of density.

    View Parameters

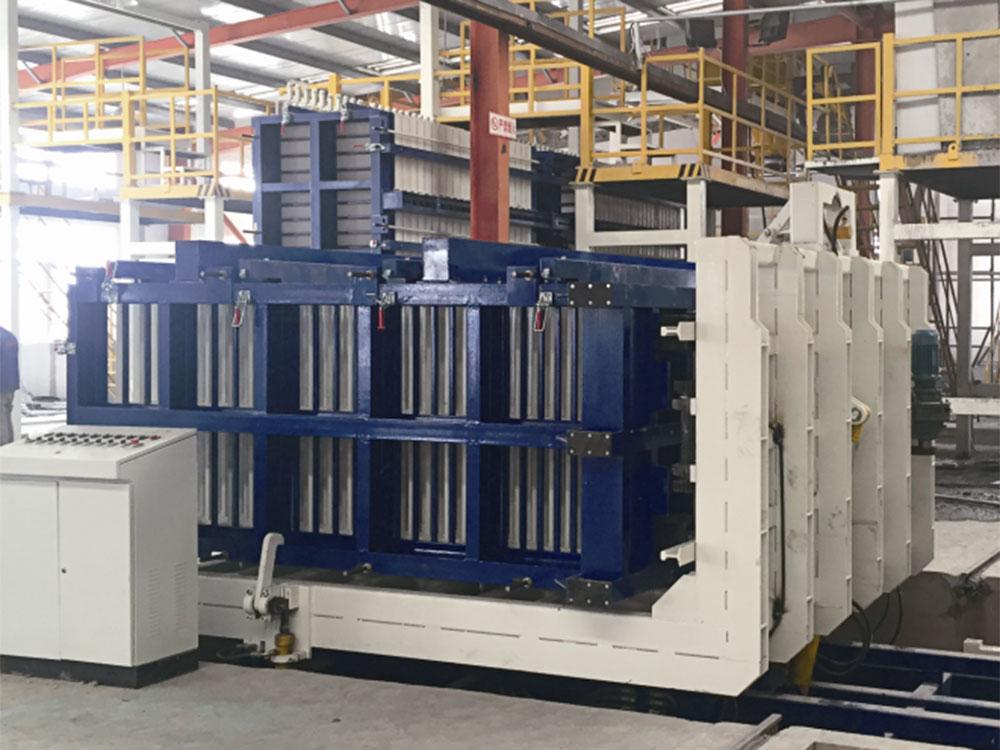

  • (5) Wall Panel Ejecting and Stacking System
    Wall panel ejecting and stacking system proceeds whole wall panel ejecting and stacking to finished products. Compared to traditional manual wall panel ejecting methods, it reduces the rate of spoiled products and improves capacity.

    View Parameters
