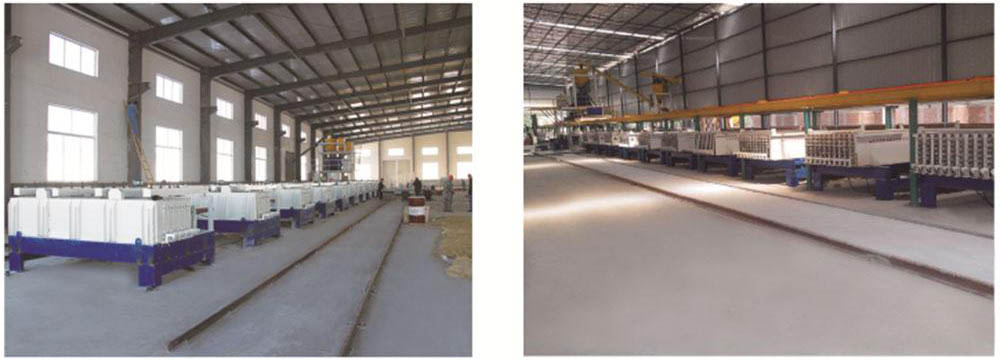

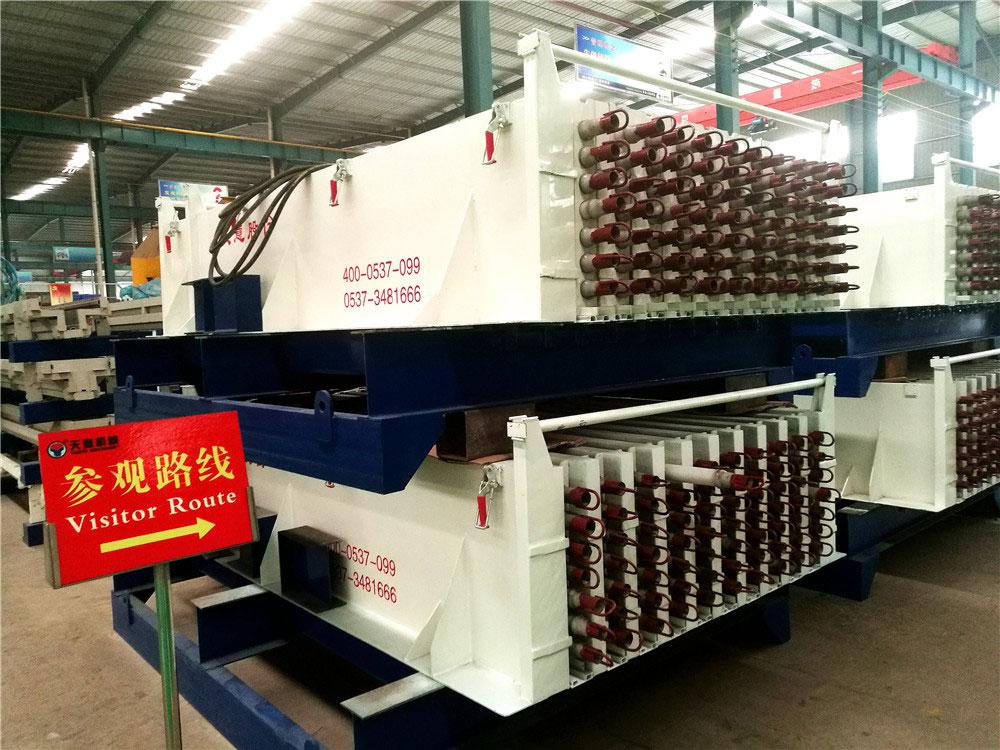

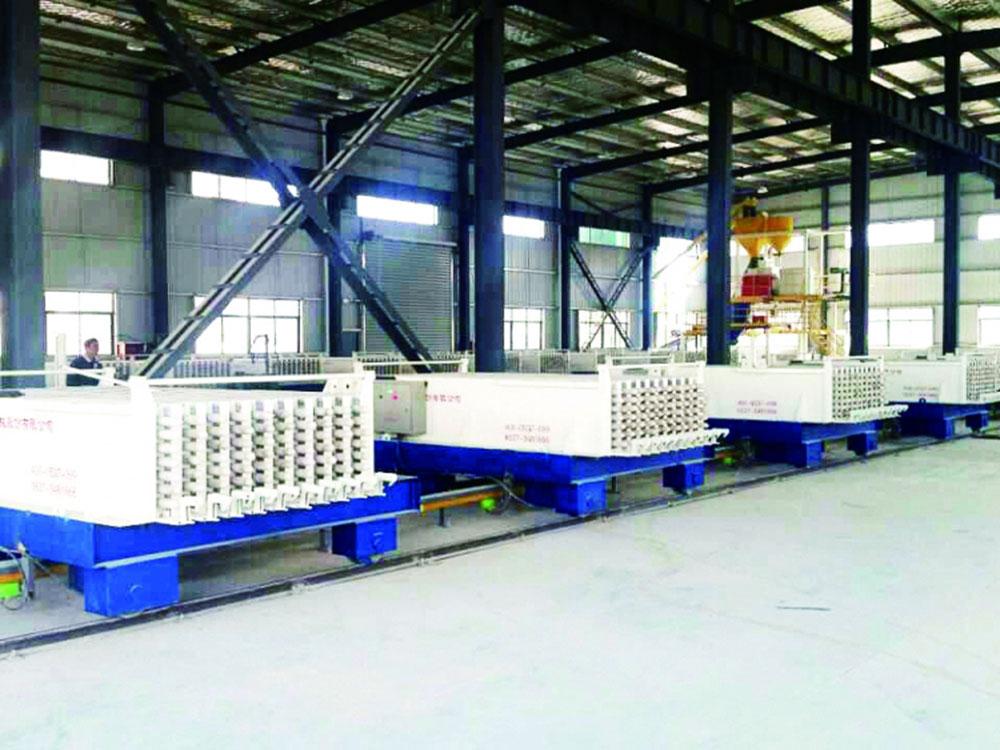

TY03A/TY03B precast wall panel machine can produce 10 pieces of wall panels one time. It is used to produce not only compound wall panels with two-side calcium silicate board and solid or hollow wall panels without two-side calcium silicate board, but also magnesite wall panels.
Generally magnesite materials are corrosive to some degree, so anti-corrosion techniques are applied to the equipment surface to make it better fit magnesite materials.
|Overall dimension||3030L×2500W×1200H mm|
|Heating system motor power||18 kW|
|Vibration system motor power||0.75 kW|
|Hydraulic system motor power||3 kW|
|Hydraulic working pressure||8 MPa|
|Maximum hydraulic working pressure||16 MPa|
|Hydraulic oil tank volume||60 L|
|Structural components||Host machine, hydraulic system, power system, |
heating system, vibration system, core tubes
|One-time molding quantity||Thickness||Width||Length|
|One-time molding quantity||Core tube diameter||Core tube quantity||Thickness||Width||Length|
Note: The above dimensions are normal ones. TANY can provide customized production lines according to your requirements for special wall panel sizes.
partition wall, exterior wall panel, interior wall panel, architectural panel
