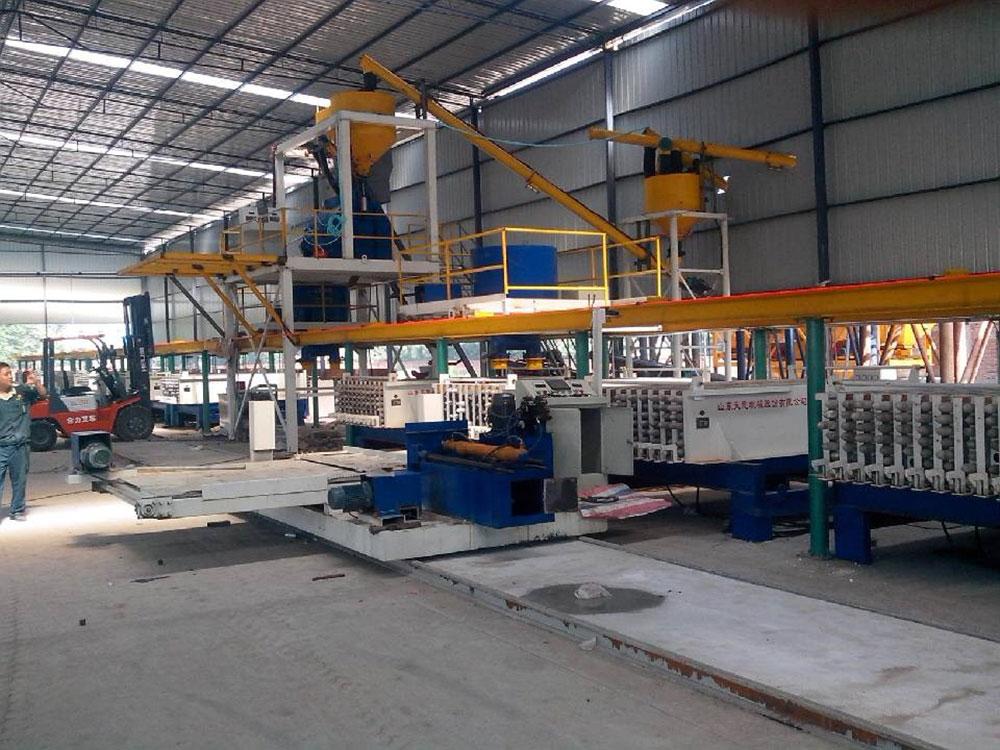

TY11 new-type prestressed wall panel machine is mainly used to produce prestressed interior and exterior wall panels, including compound wall panels with two-side calcium silicate board and solid or hollow wall panels without two-side calcium silicate board.
This machine adopts hydraulic mold opening and closing method for 4 sides, which is highly automatic. 10 pieces of wall panels can be molded one time and the designed annual output is 80,000m2 every machine.
|Overall dimension||4030L×2500W×1050H mm|
|Heating system motor power||18 kW|
|Vibration system motor power||0.75 kW|
|Hydraulic system motor power||3 kW|
|Hydraulic working pressure||8 MPa|
|Maximum hydraulic working pressure||16 MPa|
|Hydraulic oil tank volume||60 L|
|Structural components||Host machine, hydraulic system, |
power system, heating system, vibration system, molding battens
|One-time molding quantity||Thickness||Width||Length|
|One-time molding quantity||Core tube diameter||Core tube quantity||Thickness||Width||Length|
Note: The above dimensions are normal ones. TANY can provide customized production lines according to your requirements for special wall panel sizes.
