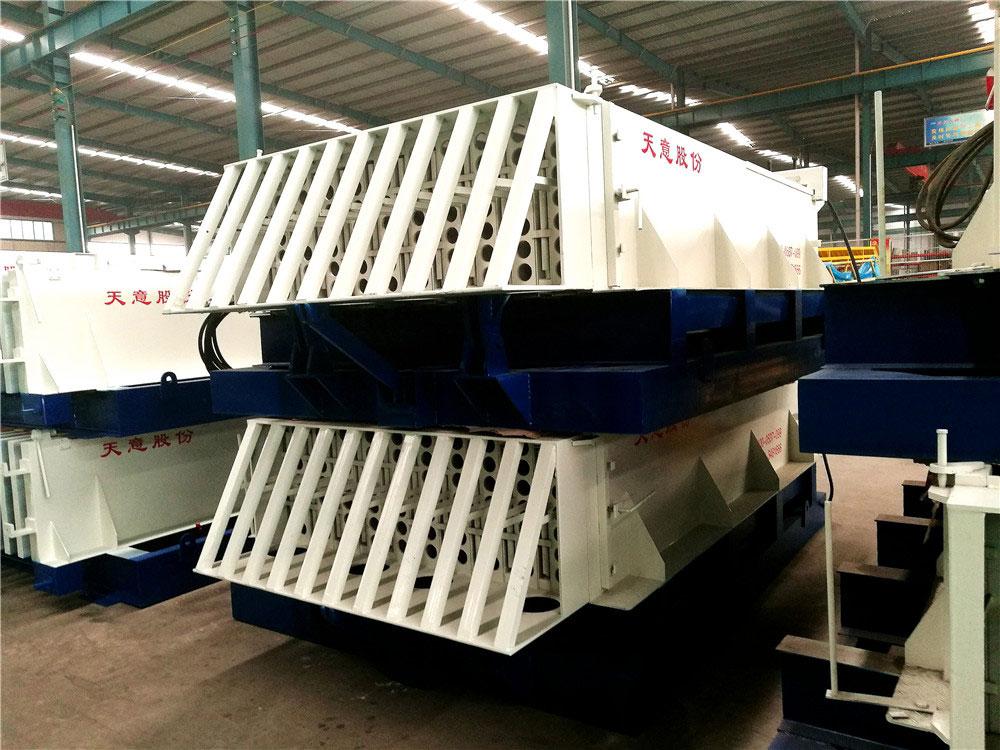

TY08 prestressed wall panel machine is mainly used to produce prestressed interior and exterior wall panels, including compound wall panels with two-side calcium silicate board and solid or hollow wall panels without two-side calcium silicate board.

This machine adopts hydraulic mold opening and closing method for 3 sides, which is highly automatic. 10 pieces of wall panels can be molded one time and the designed annual output is 80,000m² every machine.

• It is designed with automatic temperature control function and it can adopt three heating methods including electric heating, hot water heating and steam heating. This can largely shorten the moulding time of wall panels, improving the production capacity of equipment.
• The mould opening and closing system adopts hydraulic method, which can lower labor tensity.
• The mesh cloth is unfolded through mould baffle and then tightened through secondary net equipment to ensure that the smoothness of terminal product panels conforms to construction requirements.
• This machine can precisely position the mold dimension, ensuring the levelness and verticality of products.
• TY08 wall panel machine is equipped with vibration system and the whole machine can vibrate slightly to increase the density of raw material slurry.
• The mold baffle is a whole, which is convenient for the assembly.
• The mould is one-time formed on concave-convex surfaces, which can increase the utilization rate of raw materials and show higher mechanization degree.

Note: The above dimensions are normal ones. TANY can provide customized production lines according to your requirements for special wall panel sizes.
